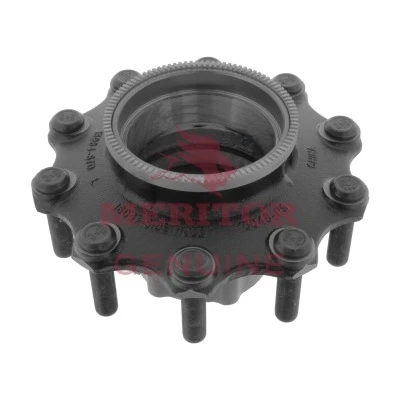

Features
Tone Ring:Y
Axle Series:TN/TQ
Fully Dressed:No
Axle Application:Trailer
Hub Style:Conventional
Hub Type:Hub only
ABS Ring Number:09-001687
Base Part Number:15984
ABS Pilot Diameter:6.503/6.50 in.
Inner Cup:HM218210
GAWR (lb):23000
Inner Bearing Surface (IBS) to Mounting Face:0.28 in.
Drum Bolt Pattern:10
Wheel Stud Hole:.904/.906 in.
Drum Bolt Size:.904/.906 in.
Inner Cone:HM218248
Outer Cup:HM212011
Wheel Stud Pattern:10
Hub Cap Bolt Circle Diameter:5.50 in.
Oil Seal:A1205X1662
Outer Cone:HM212049
IBS to OBS:3.357/3.337 in.
Drum Bolt Circle Diameter:11.25 in.
Wheel Stud Bolt Circle Diameter:11.25 in.
Hub Cap Pattern:06
Hub Cap Bolt Thread:5/16-18 UNC-2B
Drum Position:Outboard
IBS to Outer Surface:4.747/4.727 in.
Brake Type:Drum
VMRS Code:018-002-001
Drum Pilot Diameter:8.778/8.775 in.
Flange Outer Diameter:12.825 in.
Wheel Pilot Diameter:8.653/8.646 in.
Wheel Stud:09-009002
