04-15728-004 Meritor Assembly - Rear Hub

Meritor Assembly-Rear Hub P/N: 04-15728-004 or 0415728004. Genuine Meritor - Rockwell OEM brake parts, brake calipers, brake chambers, brake dust shields, brake shoes, brake foot valves, and more. Genuine Meritor parts are just a click or call away.

Non returnable item

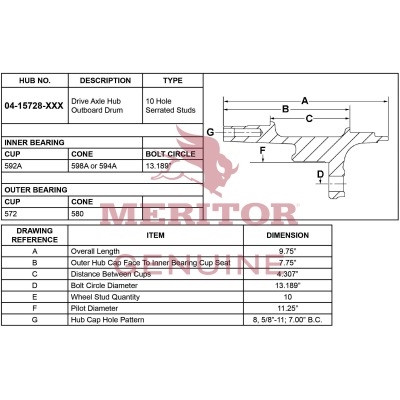

Features

Axle Series:R
Tone Ring:N
Hub Style:Conventional
Axle Application:Drive
Hub Type:Hub only
Fully Dressed:No
Base Part Number:15728
Drum Bolt Size:.904/.906 in.
Inner Bearing Surface (IBS) to Mounting Face:1.19 in.
Wheel Stud Hole:.904/.906 in.
Drum Bolt Pattern:10
IBS to Outer Surface:7.767/7.727 in.
ABS Pilot Diameter:6.775/6.778 in.
Wheel Stud Pattern:10
GAWR (lb):26000
Outer Cone:580
Inner Cup:592A
Drum Position:Outboard
Outer Cup:572
Inner Cone:594A
IBS to OBS:4.327/4.287 in.
Drum Bolt Circle Diameter:13.189 in.
Wheel Stud Bolt Circle Diameter:13.189 in.
Oil Seal:A1205Q2487
Brake Type:Drum
DriveStud Bolt Circle Dia:7.00 in.
Notes:With Wheel Studs
VMRS Code:018-002-001
Drive Stud Pattern:08
Drive Stud Thread:5/8-11 UNC-3B
Drive Flange Stud:R005800
Drum Pilot Diameter:11.250/11.247 in.
Flange Outer Diameter:14.675 in.
Wheel Pilot Diameter:11.055/11.047 in.
Wheel Stud:09-001989
