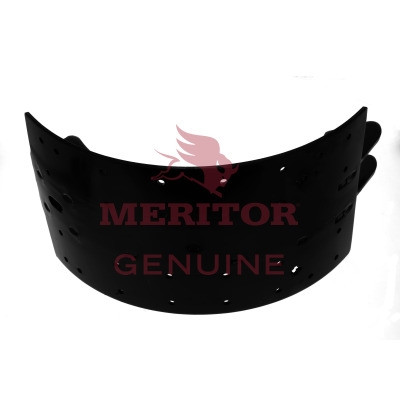

The Meritor A3222D2110 is a genuine OEM unlined brake shoe designed for the Meritor Q Plus brake system on front axle applications. The shoe features a 15.00 in. brake diameter and a 5.00 in. shoe width, with 16 rivet holes sized at 0.25 in. for use with rivet RV3109S. FMSI designation is 4703. Compatible repair kits for this shoe are KIT 8823HD and KIT 8824HD. This part is sold by Pro Gear and Transmission. Call us to confirm proper fit for your specific application.
Interchanges:
- 01005
- 099
- 4703Q
- 8235A3222D2110
- 85101667
- A3222D2110RI
- ATIA3222D2110
- L3237
- MERA3222D2110
- SAP4705
- TDAA3222D2110
Features
Q Plus front axle brake shoe application
Brake diameter: 15.00 in.
Shoe width: 5.00 in.
Unlined friction type, ready for customer-supplied lining
16 rivet holes at 0.25 in. diameter, rivet RV3109S
FMSI 4703; compatible repair kits KIT 8823HD and KIT 8824HD
Tech Specs
- Brake Diameter: 15.00 in.
- Brake Shoe Width: 5.00 in.
- Friction Type: Unlined
- Rivet Hole Count: 16
- Rivet Size: 0.25 in.
- Rivet Number: RV3109S
- FMSI: 4703
- Brake Type: Q Plus
- Application: Meritor Q Plus, Front Axle
- Compatible Repair Kits: KIT 8823HD, KIT 8824HD
- VMRS Code: 013-002-012
