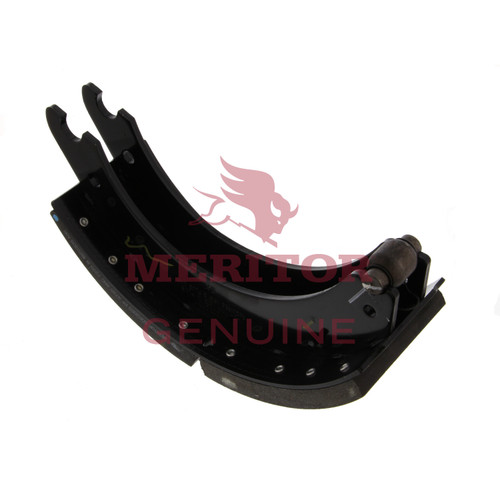

The Meritor A2-3222X2208 or A23222X2208 is a long roller brake shoe assembly built for the Q Plus brake system. It fits rear axle positions on trucks, tractors, and trailers equipped with Meritor Q Plus brakes. The shoe measures 16.50 in. in brake diameter and 7.00 in. in width, and uses lining number R403 (Meritor Production lining type) with 28 rivet holes sized at 0.25 in. FMSI reference is 4707. The companion repair kit is KIT 8000HD. Call us to confirm proper fit for your application before ordering.
Features
Q Plus rear axle application: truck, tractor, and trailer
Brake diameter: 16.50 in.; shoe width: 7.00 in.
Lining number R403, Meritor Production lining type
Rivet hole count: 28; rivet size: 0.25 in.
FMSI: 4707
Companion repair kit: KIT 8000HD
Tech Specs
- Brake Type: Q Plus
- Brake Diameter: 16.50 in.
- Brake Shoe Width: 7.00 in.
- Lining Number: R403
- Lining Type: Meritor Production
- FMSI: 4707
- Rivet Hole Count: 28
- Rivet Size: 0.25 in.
- Application: Meritor Q Plus - Rear axle, truck, tractor, trailer
- Companion Repair Kit: KIT 8000HD
- VMRS Code: 013-002-012
