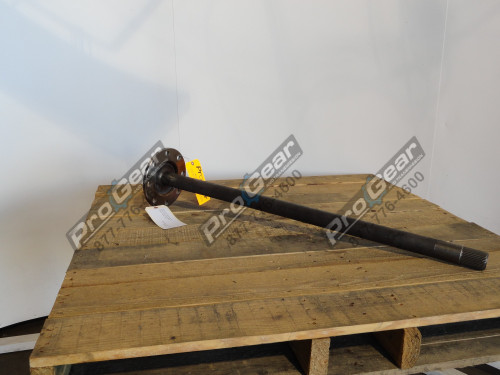

Meritor axle shaft 3206P1602 or 3206-P-1602 is a drive axle shaft built with 36 splines and an overall length of 39.78 in. The shaft body measures 1.88 in. in diameter, with a spline size of 1.85 in. and a spline length of 2.13 in. The flange measures 8.38 in. in diameter and carries 8 bolt holes on a 7.00 in. bolt circle, each hole 0.73 in. with a tapered seat. This shaft has no lube holes and no puller holes. Call us to confirm proper fit for your axle application. Sold by Pro Gear and Transmission.
Features
36-spline drive axle shaft
39.78 in. overall length, 1.88 in. body diameter
Spline size 1.85 in., spline length 2.13 in.
8.38 in. flange diameter with 8 holes on a 7.00 in. bolt circle
0.73 in. tapered holes, no lube holes, no puller holes
Genuine Meritor part sold by Pro Gear and Transmission
Tech Specs
- Spline Count: 36
- Length: 39.78 in.
- Body Diameter: 1.88 in.
- Spline Size: 1.85 in.
- Spline Length: 2.13 in.
- Flange Diameter: 8.38 in.
- Bolt Circle Diameter: 7.00 in.
- Hole Count: 8
- Hole Size: 0.73 in.
- Hole Type: Taper
- Lube Holes: No
- Puller Holes: No
