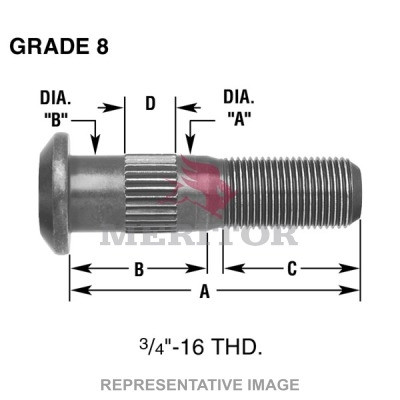

The Meritor 09-001539 or 09001539 is a right-hand, Grade 8 serrated wheel stud for heavy-duty wheel-end applications. Thread specification is 3/4"-16 UNF-2A with a thread length of 33.3 mm and a body length of 42.2 mm. The serrated shank measures 12.7 mm long and 20.57 mm in diameter, locking the stud securely into the hub flange. Under-head length is 3-1/8 in., body diameter is 19.81 mm, and the round head measures 33.3 mm in diameter and 7.9 mm thick. This part supersedes Euclid E-11664-R. It also cross-references to Automann 2016274R. Call us to confirm proper fit for your application.
Features
Grade 8 strength, right-hand 3/4"-16 UNF-2A thread
Serrated shank: 12.7 mm long, 20.57 mm diameter for positive hub engagement
Body length 42.2 mm, body diameter 19.81 mm
Thread length 33.3 mm; round head 33.3 mm diameter x 7.9 mm thick
Under-head length 3-1/8 in.
Supersedes Euclid E-11664-R; cross-references Automann 2016274R
Tech Specs
- Thread: 3/4"-16 UNF-2A, Right Hand
- Grade: 8
- Head Style: Round
- Serration: Serrated
- Under-Head Length: 3-1/8 in.
- Body Length: 42.2 mm
- Body Diameter: 19.81 mm
- Thread Length: 33.3 mm
- Thread Diameter: 0.75 in.
- Threads per Inch: 16
- Serration Length: 12.7 mm
- Serration Diameter: 20.57 mm
- Head Diameter: 33.3 mm
- Head Thickness: 7.9 mm
- OEM Cross-Reference: Euclid E-11664-R (no longer available)
- Aftermarket Cross-Reference: Automann 2016274R
- VMRS Code: 018-003-009
