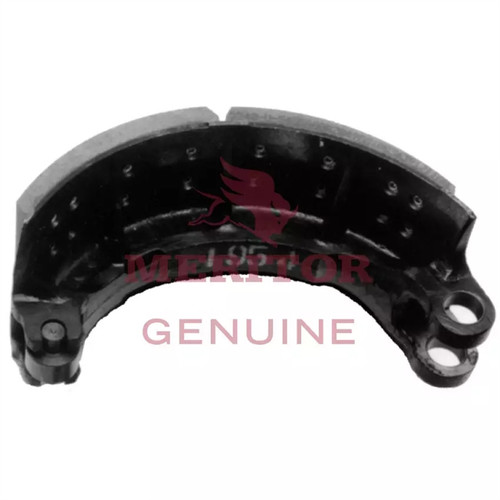

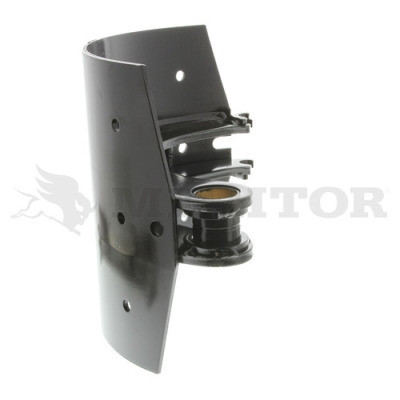

The Meritor A25-3222D1954 or A253222D1954 is an unlined P Cast brake shoe designed for rear drive or trailer axle applications. It fits a 16.50 in. brake drum with a 7.00 in. shoe width, carries FMSI designation 4515, and ships with bushing 1225-F-266 and roller 1199-U-3765 already included. The shoe features 28 rivet holes sized at 0.25 in., using rivet number RV31010S. For lining installation, the recommended repair kit is KIT 9081. Aftermarket reference R4515 applies. Call us to confirm proper fit for your application.
Interchanges:
- 01135
- 029
- 092
- 1135
- 8235A253222D1954
- A253222D1954RI
- L278
- L3527
- MERA253222D1954
- TDAA253222D1954
- Automann 142451585
- BWP M508
- Dana 21884
- Dana 21912
- Dana M16WS138
- Haldex 65349
- Standard Forge 201108001
- Transit Parts TP591
Non returnable item
Features
Brake type: P Cast, unlined - FMSI 4515
Brake drum diameter: 16.50 in.
Brake shoe width: 7.00 in.
Rivet holes: 28, sized 0.25 in., rivet number RV31010S
Includes bushing 1225-F-266 and roller 1199-U-3765
Rear drive or trailer axle application; repair kit KIT 9081 recommended
Tech Specs
- Brake Type: P Cast
- Lining: Unlined
- FMSI: 4515
- Aftermarket Reference: R4515
- Brake Drum Diameter: 16.50 in.
- Brake Shoe Width: 7.00 in.
- Rivet Hole Count: 28
- Rivet Size: 0.25 in.
- Rivet Number: RV31010S
- Includes: Bushing 1225-F-266, Roller 1199-U-3765
- Recommended Repair Kit: KIT 9081
- Application: Rear drive or trailer axle
- VMRS Code: 013-002-013
