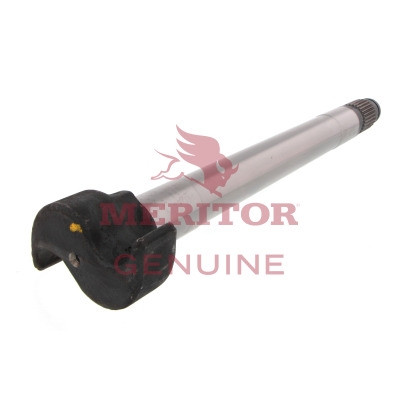

The Meritor 2210E7649 is a left-hand S-cam camshaft engineered for Q Plus drum brake assemblies on drive and steer axles. It carries a 28-spline, 1.50 in. diameter spline end and a bushing journal length of 1.77 in., with an effective camshaft length of 14.70 in. Designed for 16.50 in. brake diameter applications, this Head Type 11 camshaft pairs directly with right-hand camshaft 2210D7648. Compatible repair kit KIT8042 and brake hardware kit KIT8000HD are available separately. Call us to confirm proper fit for your specific axle and brake configuration.
Features
Left-hand (LH) S-cam camshaft for Q Plus drum brake systems
28-spline camshaft end, 1.50 in. spline diameter
Effective camshaft length: 14.70 in.
Bushing journal length: 1.77 in.
Designed for 16.50 in. brake diameter on drive or steer axles
Head Type 11; pairs with right-hand camshaft 2210D7648
Tech Specs
- Left or Right: Left Hand (LH)
- Brake Type: Q Plus
- Axle Application: Drive or Steer
- Camshaft Spline Count: 28
- Camshaft Spline Diameter: 1.50 in.
- Bushing Journal Length: 1.77 in.
- Effective Length: 14.70 in.
- Brake Diameter: 16.50 in.
- Head Type: 11
- Paired Camshaft (RH): 2210D7648
- Camshaft Repair Kit: KIT8042
- Brake Hardware Kit: KIT8000HD
- VMRS Code: 013-017-004
