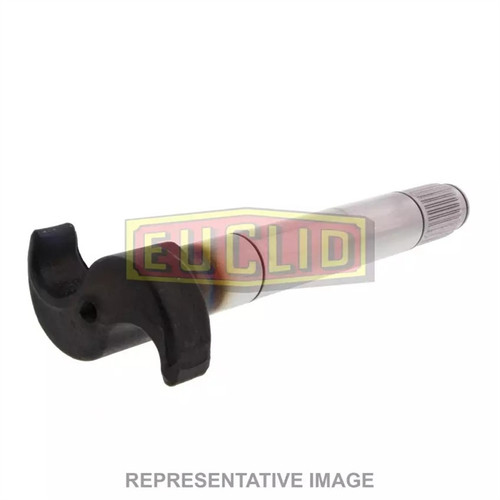

The Meritor E-11860 or E11860 is a left-hand S-cam camshaft built for trailer axle drum brake applications. It carries an XL brake type rating and fits 16.50 in. brake diameter assemblies. The camshaft measures 26.25 in. in effective length with a 1.50 in. spline diameter and a 28-spline count, keeping it precisely matched to heavy-duty trailer brake spiders. The bushing journal measures 1.62 in. in diameter and 2.25 in. in length. Its right-hand pair is E11861. Camshaft repair kit E11910 and brake hardware kit E5515 are the associated service parts. Call us to confirm proper fit for your trailer brake configuration.
Interchanges:
- Automann 12328260801
- Dana M16WKL25264
- Dayton Parts Batco 04562632
- Sirco Brake C314L
- Spicer 17937
Features
Left-hand (LH) camshaft for trailer axle drum brake applications
XL brake type, 16.50 in. brake diameter
Effective length: 26.25 in.
28-spline count, 1.50 in. camshaft spline diameter
Bushing journal: 1.62 in. diameter x 2.25 in. length
Paired with right-hand camshaft E11861; repair kit E11910, hardware kit E5515
Tech Specs
- Brake Diameter: 16.50 in.
- Camshaft Spline Count: 28
- Left or Right: LH
- Effective Length: 26.25 in.
- Head Type: 02
- Brake Type: XL
- Camshaft Spline Dia.: 1.50 in.
- Bushing Journal Dia.: 1.62 in.
- Bushing Journal Length: 2.25 in.
- Camshaft Repair Kit: E11910
- Axle: Trailer
- Brake Hardware Kit: E5515
- Paired Camshaft: E11861
