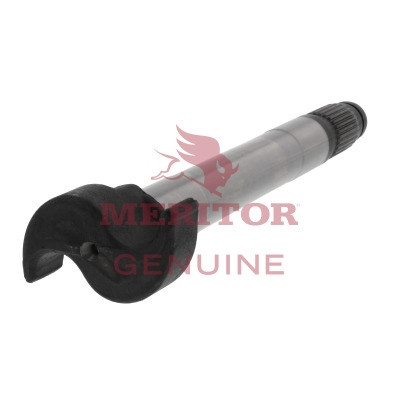

The Meritor 2210D6868 is a right-hand S-cam camshaft designed for 16.5-inch P, Q, and Q Plus trailer drum brakes, including fabricated spider axles with bolt-on bushing (A-3105-L-1078). Key dimensional specs: 24.07-inch effective length, 1.50-inch spline diameter, 28-spline count, and a 2.25-inch bushing journal length. This camshaft pairs with left-hand camshaft 2210E6869. Compatible repair kits include KIT8048 for 16.5-inch brakes, KIT8058 for press-in bushing applications, and KIT8078 for bolt-on bushing applications; hardware kit KIT8000HD also applies. Call us to confirm proper fit for your trailer axle configuration.
Interchanges:
- RI2210D6868
- RO2210D6868
- RW2210D6868
- TCQ10355R
- TDA2210D6868
- WA055020
- ZZCS41115
- Automann 12228240204
- BWP M3172R
- Dayton Parts Batco 04892422
- Dayton Parts Batco 04932421
- Fleetrite FLTCS168
- Haldex CS41115
- Hercules H10859R
- Hercules HQ10355R
- Spicer 17660A
- Spicer 17724
- Trailmobile 385511
- Wabash Trailer 41426868
Features
Right-hand (RH) S-cam camshaft for trailer axle applications
16.5-inch brake diameter, compatible with P, Q, and Q Plus brake types
24.07-inch effective length
1.50-inch spline diameter with 28-spline count
2.25-inch bushing journal length; fits fabricated spiders with bolt-on bushing (A-3105-L-1078)
Pairs with left-hand camshaft 2210E6869; repair kit options: KIT8048, KIT8058, KIT8078
Tech Specs
- Brake Diameter: 16.50 in.
- Effective Length: 24.07 in.
- Camshaft Spline Diameter: 1.50 in.
- Camshaft Spline Count: 28
- Bushing Journal Length: 2.25 in.
- Side: Right Hand (RH)
- Axle Type: Trailer
- Brake Types: P, Q, Q Plus
- Compatible Brake Hardware Kit: KIT8000HD
- Compatible Camshaft Repair Kits: KIT8048 (16.5 in. brakes); KIT8058 (16.5 in. brakes, press-in bushing); KIT8078 (16.5 in. brakes, bolt-on bushing)
- Paired Left-Hand Camshaft: 2210E6869
- Spider Type: Fabricated with bolt-on bushing (A-3105-L-1078)
- VMRS Code: 013-017-004
