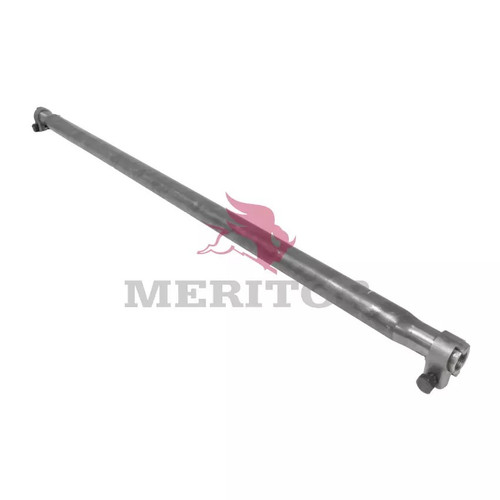

The Meritor R230589 is a front axle cross tube and ends assembly designed for steer axle applications on FC941, FF943, FF981, FF982, and FF986 axle models. The tube measures 59.63 inches without ends and 65.50 inches center-to-center, with a 1.50-inch large diameter tube and 1.125-12 thread size at both ends. The curbside threaded end is R230068 (LH thread) and the roadside threaded end is R230069 (RH thread). Call us to confirm proper fit for your application.
Interchanges:
- 8235R230589
- HRR230589
- R230589PZ
- TDAR230589
- Automann 1TA222
Features
Fits Meritor steer axle models FC941, FF943, FF981, FF982, and FF986
Center-to-center length: 65.50 in.; length without ends: 59.63 in.
Crosstube large diameter: 1.50 in.
Thread size: 1.125-12
Curbside end R230068 (LH); roadside end R230069 (RH)
Tech Specs
- Crosstube Large Diameter: 1.50 in.
- Crosstube Thread Size: 1.125-12
- Length w/o Ends: 59.63 in.
- RH Threaded End: R230069
- Axle Model: FC941; FF943; FF981; FF982; FF986
- LH Threaded End: R230068
- Center-to-Center Length: 65.50 in.
- Crosstube End - Curbside: R230068
- Crosstube End - Roadside: R230069
