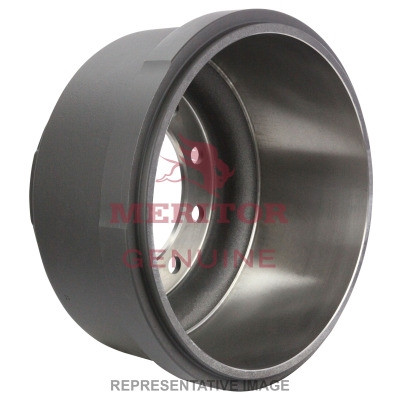

Meritor part number 85-123370-002 or 85123370002 is a cast balanced brake drum for heavy-duty disc wheel axle applications rated at 14,600 lbs. capacity. The drum measures 16.50 in. in diameter with a 5.00 in. brake width and a 5.50 in. brake surface width. Overall depth is 9.14 in. and the pilot diameter is 8.78 in. Mounting is outboard on a 10-bolt pattern with an 11.25 in. bolt circle diameter and 0.94 in. bolt holes. Call us to confirm proper fitment for your application before ordering.
Features
Brake drum diameter: 16.50 in.
Brake width: 5.00 in., brake surface width: 5.50 in.
10-bolt outboard mount with 11.25 in. bolt circle diameter
Bolt hole diameter: 0.94 in.
Pilot diameter: 8.78 in., overall depth: 9.14 in.
Cast balanced construction for disc wheel axles rated at 14,600 lbs.
Tech Specs
- Brake Diameter: 16.50 in.
- Brake Width: 5.00 in.
- Brake Surface Width: 5.50 in.
- Overall Depth: 9.14 in.
- Pilot Diameter: 8.78 in.
- Bolt Circle Diameter: 11.25 in.
- Bolt Hole Number: 10
- Bolt Hole Diameter: 0.94 in.
- Drum Mounting: Outboard
- Wheel Type: Disc
- Type: Cast Balanced
- Axle Capacity: 14,600 lbs.
- VMRS Code: 013-017-006
