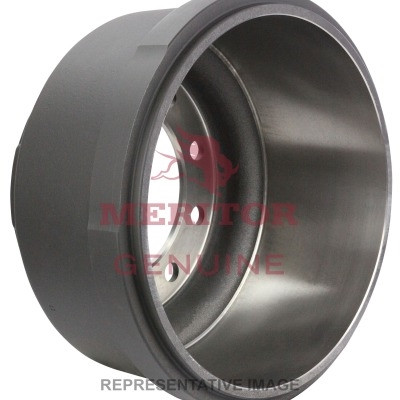

Meritor part number 03-123276-002 or 03123276002 is a cast unbalanced brake drum engineered for disc-wheel axles rated at 19,000 lbs. The drum measures 15.00 in. in diameter with a 7.00 in. brake width and a 7.50 in. brake surface width. It uses an 8-bolt pattern on a 10.83 in. bolt circle, with a 0.84 in. bolt hole diameter and an 8.99 in. pilot diameter. Overall depth is 10.92 in. Drum type is AD, and mounting is outboard. A genuine Meritor part available from Pro Gear and Transmission. Call us to confirm proper fit for your axle and wheel-end configuration.
Features
Cast unbalanced drum type AD, outboard mounting
15.00 in. brake diameter, 7.00 in. brake width, 7.50 in. brake surface width
8-bolt pattern, 10.83 in. bolt circle, 0.84 in. bolt hole diameter
8.99 in. pilot diameter, 10.92 in. overall depth
Disc wheel type, 19,000-lb. axle capacity rating
VMRS Code: 013-017-006
Tech Specs
- Type: Cast Unbalanced
- Drum Type: AD
- Drum Mounting: Outboard
- Brake Diameter: 15.00 in.
- Brake Width: 7.00 in.
- Brake Surface Width: 7.50 in.
- Overall Depth: 10.92 in.
- Bolt Hole Number: 8
- Bolt Hole Diameter: 0.84 in.
- Bolt Circle Diameter: 10.83 in.
- Pilot Diameter: 8.99 in.
- Wheel Type: Disc
- Axle Capacity: 19,000 lbs.
- VMRS Code: 013-017-006
