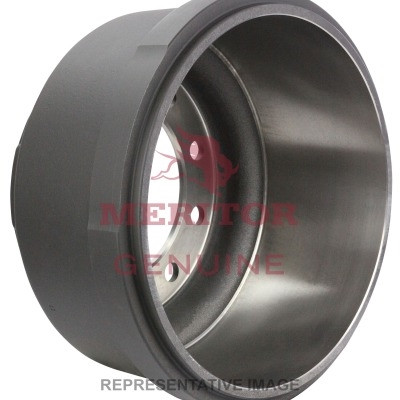

The Meritor 03-123302-002 (also referenced as 03123302002) is a cast unbalanced brake drum sized 16.50 in. diameter by 6.00 in. width, designed for disc-wheel, outboard-mount applications on axles rated to 20,000 lbs. capacity. The drum uses a 10-bolt pattern on a 13.19 in. bolt circle, with bolt holes of 0.94 in. diameter. Additional dimensions include an 11.25 in. pilot diameter, 9.75 in. overall depth, and 6.63 in. brake surface width. Drum type is R. This is a genuine Meritor part, sold by Pro Gear and Transmission. Call us to confirm proper fit for your axle configuration before ordering.
Features
Brake diameter: 16.50 in.; brake width: 6.00 in.; brake surface width: 6.63 in.
10-bolt hole pattern; bolt hole diameter: 0.94 in.; bolt circle diameter: 13.19 in.
Pilot diameter: 11.25 in.; overall depth: 9.75 in.
Drum type: R; mounting: outboard; wheel type: disc
Axle capacity rating: 20,000 lbs.
Genuine Meritor part, VMRS code 013-017-006
Tech Specs
- Type: Cast Unbalanced
- Brake Diameter: 16.50 in.
- Brake Width: 6.00 in.
- Brake Surface Width: 6.63 in.
- Overall Depth: 9.75 in.
- Pilot Diameter: 11.25 in.
- Bolt Hole Number: 10
- Bolt Hole Diameter: 0.94 in.
- Bolt Circle Diameter: 13.19 in.
- Wheel Type: Disc
- Drum Type: R
- Drum Mounting: Outboard
- Axle Capacity: 20,000 lbs.
- VMRS Code: 013-017-006
