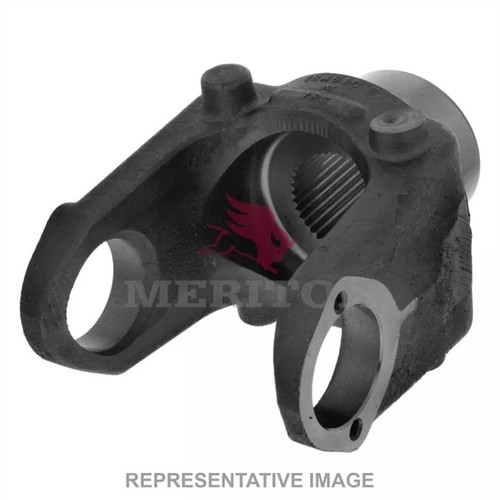

16N4-5751 Meritor End Yoke

Meritor

End Yoke

Listing Price: $712.58
Sale Price: $395.47

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
MER16N45751
UPC:
737238306238
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
16N4-5751 or 16N45751 is a Meritor 16N Series end yoke with 32 splines on a 2.114 in. spline diameter and a 2.25 in. spline length. The hub diameter is 3.00 in., the center to end measurement is 5.38 in., and the joint angle is 45 degrees. It takes the M279X U-joint kit with a 1.88 in. bearing cap diameter. An end yoke connects a driveshaft's universal joint to the shaft it mates with, passing torque through even when the two shafts sit at an angle. Supersedes part number(s) 5-4-5751. A genuine Meritor part from Pro Gear and Transmission.

Features

16N Series end yoke, 32 splines
Spline diameter 2.114 in., spline length 2.25 in.
Hub diameter 3.00 in., center to end 5.38 in., counter bore depth 0.42 in.
Joint angle 45 degrees, yoke dimension across ears 5.31 in.
Uses the M279X U-joint kit, bearing cap diameter 1.88 in.
Listed under Round Bearings - 16N Series in our parts manual

Tech Specs

  • Marketing Group: 16N Series
  • Number of Splines: 32I
  • Spline Diameter: 2.114 in.
  • Series: 16N
  • Hub Diameter: 3.00 in.
  • Spline Length: 2.25 in.
  • Center To End: 5.38 in.
  • Joint Angle: 45 degrees
  • Counter Bore Depth: 0.42 in.
  • Use U-Joint Kit: M279X
  • Bearing Cap Diameter: 1.88 in.
  • Yoke Dim. Across Ears: 5.31 in.
