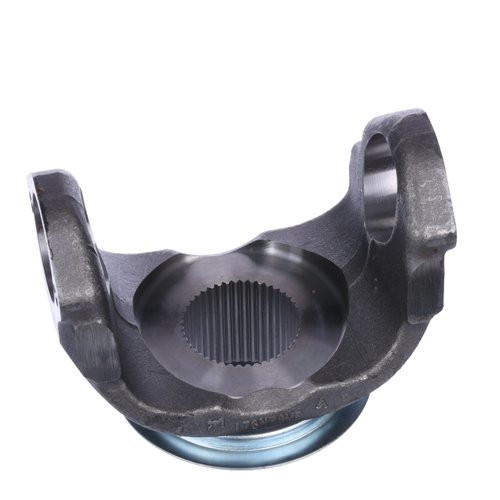

The Meritor 176N4-5221X or 176N45221X is a genuine OEM end yoke in the 176N Series driveline line. It features a 2.274 in. spline diameter with 44 splines and a 2.50 in. spline length, seating into a 3.00 in. hub diameter. Center-to-end measurement is 5.25 in., and the yoke spans 7.00 in. across the ears with a 1.94 in. bearing cap diameter. Joint angle is rated at 34 degrees, and counter bore depth is 0.24 in. This yoke uses U-joint kit M407X and is paired with deflector DEFR50-24. A genuine Meritor part, sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Interchanges:
- 8235176N45221X
- DS6345221X
- E6345221X
- HR176N45221X
- S20169
- SI6345221X
- TDA176N45221X
- Dana 6345221X
Features
176N Series end yoke, part number 176N4-5221X or 176N45221X
44 splines, 2.274 in. spline diameter, 2.50 in. spline length
Hub diameter 3.00 in., center-to-end 5.25 in.
Yoke dimension across ears: 7.00 in.; bearing cap diameter: 1.94 in.
34-degree joint angle; counter bore depth 0.24 in.
Uses U-joint kit M407X; deflector DEFR50-24
Tech Specs
- Series: 176N
- Marketing Group: 176N Series
- Spline Diameter: 2.274 in.
- Number of Splines: 44
- Spline Length: 2.50 in.
- Hub Diameter: 3.00 in.
- Center To End: 5.25 in.
- Counter Bore Depth: 0.24 in.
- Joint Angle: 34 degrees
- Yoke Dim. Across Ears: 7.00 in.
- Bearing Cap Diameter: 1.94 in.
- Deflector: DEFR50-24
- Compatible U-Joint Kit: M407X
