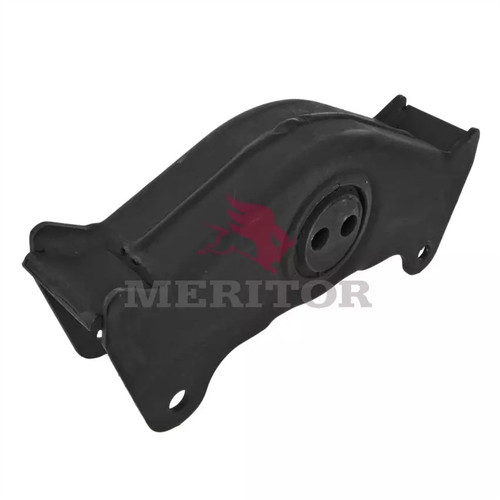

The Meritor E3383 or E-3383 is a fabricated trailer equalizer designed to OE Trailmobile specifications, supplied under the Euclid All-Makes product line. It measures 16.00 in. in overall length with an 11.687 in. center-to-center dimension, and accepts a 0.75 in. shaft O.D. with a matching 0.75 in. bushing I.D. The rubber bushing (E-3394) is included. Two mounting holes, late-model fabricated construction. If you need help confirming fit for your trailer application, call us at Pro Gear and Transmission.
Non returnable item
Features
Fabricated construction, late-model design to OE Trailmobile spec
Overall length: 16.00 in.
Center-to-center dimension: 11.687 in.
Shaft O.D. and bushing I.D.: 0.75 in.
Bushing inside diameter: 3.00 in.
Includes E-3394 rubber bushing; 2-hole mounting
Tech Specs
- OE Mfg.: Trailmobile
- # of Holes: 2
- Length: 16.00 in.
- Product Type: High Quality Euclid All-Makes
- Bushing Type: Rubber
- Model: Late Model - Fabricated
- Shaft O.D. and Bushing I.D.: 0.75 in.
- Bushing Included: Yes
- Related Bushing: E-3394 (Rubber)
- Bushing Inside Diameter: 3.00 in.
- Cast or Fabricated: Fabricated
- Center to Center: 11.687 in.
- Notes: Includes E-3394 Bushing
