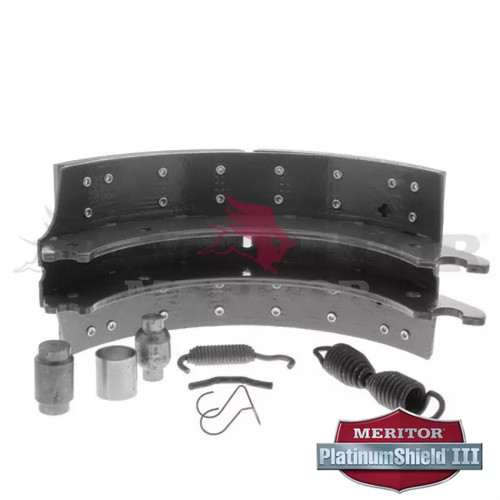

The Meritor XK23014707QP is a Q Plus lined brake shoe kit with hardware, designed for Meritor Q Plus drum brake applications. Shoes measure 16.50 inches in diameter and 7.00 inches wide, fitted with lining number MA2301 and coated with Platinum Shield III for corrosion resistance. The friction type is OEM RSD (Meritor Production RSD), and the lining weight rating covers the 23,000-26,000 lb. axle range. Rivets are 0.25 in. (rivet number RV3109), and the kit pairs with hardware kit KIT 8000HD. The FMSI number is 4707QP; the aftermarket shoe cross-reference is R4707. Call us to confirm proper fit for your application.
A refundable core charge of $50.40 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Q Plus brake application, 16.50 in. brake diameter x 7.00 in. shoe width
Lining number MA2301, Meritor Production RSD friction type
Platinum Shield III shoe coating for corrosion protection
Lining weight rating: 23,000-26,000 lb.
Rivet size 0.25 in., rivet number RV3109
Includes hardware; pairs with brake hardware kit KIT 8000HD
Tech Specs
- Brake Type: Q Plus
- Brake Diameter: 16.50 in.
- Brake Shoe Width: 7.00 in.
- Lining Number: MA2301
- Friction Type: OEM RSD (Meritor Production RSD)
- Shoe Coating: Platinum Shield III
- Lining Weight Rating: 23,000-26,000 lb.
- Rivet Size: 0.25 in.
- Rivet Number: RV3109
- Brake Hardware Kit: KIT 8000HD
- FMSI: 4707QP
- Aftermarket Brake Shoe Cross-Reference: R4707
- Related Core Group: SC4707
- Related Core Number: C4707QP
- Reman Shoe Part Number: XSMA23014707QP
- OE Manufacturer: Meritor
- Application: Meritor Q Plus
