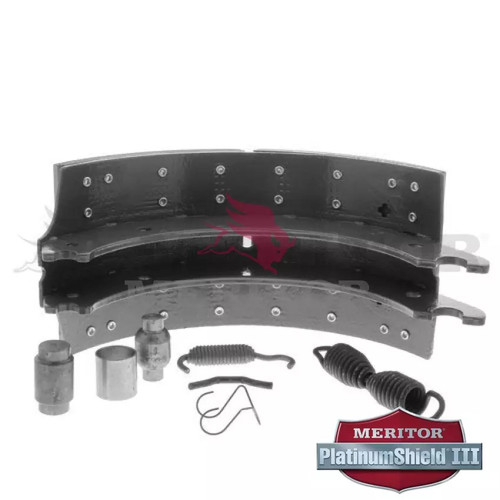

The Meritor XK3014514Q is a remanufactured lined brake shoe kit with hardware, built to Meritor Production specifications for Q-type drum brake applications. The kit fits a 16.50-inch brake drum with a 6.00-inch shoe width and uses R301 lining (FMSI 4514Q), rated for axle weights up to 23,000 lbs. Each shoe is riveted with 24 rivet holes using 0.25-inch rivets (Meritor rivet number RV3109). The kit includes brake hardware (KIT 8000). The corresponding Meritor production brake shoe reference is A-3222-C-1381, and the reman shoe designation is XSR301 4514Q. Related core numbers are C4514Q and SC4514Q. Call us to confirm proper fit for your specific axle or brake configuration.
This product has been superseded and is no longer available. If ordered, you will receive XK3124514Q.
A refundable core charge of $44.80 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Brake drum diameter: 16.50 in.
Brake shoe width: 6.00 in.
Lining number: R301, FMSI 4514Q, rated for 23,000 lb. axle capacity
Application: Meritor Q-type brake
Rivet hole count: 24, rivet size 0.25 in. (Meritor RV3109)
Includes brake hardware kit KIT 8000
Tech Specs
- Related Core Group: SC4514Q
- Related Core Number: C4514Q
- Brake Shoe Width: 6.00 in.
- Lining Type: Meritor Production
- Lining Number: R301
- FMSI: 4514Q
- Lining Weight Rating: 23,000 lb.
- Brake Diameter: 16.50 in.
- OE Manufacturer: Meritor
- Meritor Production Brake Shoe: A-3222-C-1381
- Reman Shoe: XSR301 4514Q
- Brake Type: Q
- Rivet Size: 0.25 in.
- Rivet Number: RV3109
- Brake Hardware Kit: KIT 8000
- Rivet Hole Count: 24
