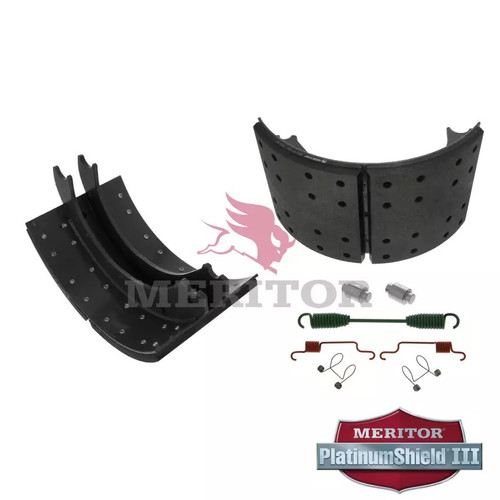

XK3124720QP is a genuine Meritor lined shoe kit with hardware for Meritor Q Plus drum brakes. It is sized for a 16.50 in. brake diameter with a 5.00 in. shoe width, uses MA312 lining with a lining rating of 23,000, and has 16 rivet holes for 0.25 in. rivets (rivet number RV3109). The shoes wear a Platinum Shield III coating, and the hardware is listed as KIT 8081.
Shoes are best serviced together with their hardware, because worn camshaft bushings, anchor hardware or weak return springs show up as lining that wears heavier to one side or one end. A cracked lining can mean the friction material has loosened from the shoe, and grease or oil on the lining upsets brake balance. Call us to confirm proper fit for your application.
A refundable core charge of $56.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Lined shoe kit with hardware for Meritor Q Plus brakes
16.50 in. brake diameter with a 5.00 in. shoe width
MA312 lining, lining rating 23,000, friction type OEM
16 rivet holes for 0.25 in. rivets, rivet number RV3109
Platinum Shield III shoe coating, brake hardware kit KIT 8081
Shoes and hardware are best serviced together, since worn bushings, anchors or return springs cause uneven lining wear
Tech Specs
- Brake type: Q Plus
- Brake diameter: 16.50 in.
- Brake shoe width: 5.00 in.
- Lining number: MA312
- Lining rating: 23,000
- Friction type: OEM
- Shoe coating: Platinum Shield III
- Rivet hole count: 16
- Rivet size: 0.25 in.
- Rivet number: RV3109
- FMSI: 4720QP
- Brake hardware kit: KIT 8081
