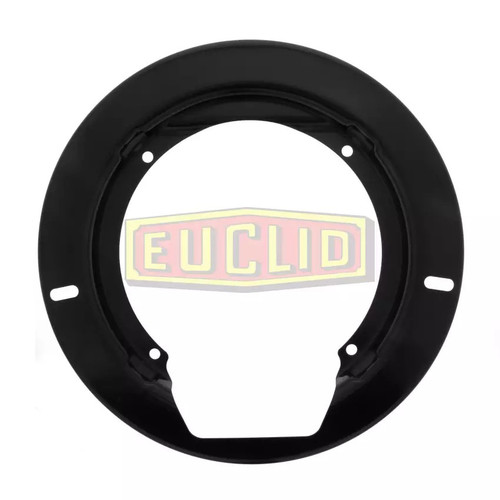

The Meritor 3264H1386 is a genuine OEM dust shield designed for Q Plus drum brake assemblies with a 16.50 in. x 8.625 in. brake size. Configured for fabricated spider applications, it mounts via cap screw using six mounting holes - four at 0.348 in. diameter and two at 0.281 in. diameter. Key dimensions include an outer diameter of 18.12 in., inner diameter of 9.63 in., a lip height of 0.300 in., and an offset of 2.935 in. A genuine Meritor part available from Pro Gear and Transmission - call us to confirm proper fit for your application.
Interchanges:
- TDA3264H1386
Features
Q Plus brake model, 16.50 in. x 8.625 in. brake size
Designed for fabricated spider applications
Six mounting holes: 4 @ 0.348 in. and 2 @ 0.281 in., cap screw mount
Outer diameter: 18.12 in. / Inner diameter: 9.63 in.
Lip height: 0.300 in. / Offset: 2.935 in.
Tech Specs
- Brake Model: Q Plus
- Brake Size: 16.50 in. x 8.625 in.
- Application: Fabricated Spider
- Mount Type: Screw / Cap Screw
- Number of Mounting Holes: 6 (4 @ 0.348 in. diameter, 2 @ 0.281 in. diameter)
- Outer Diameter: 18.12 in.
- Inner Diameter: 9.63 in.
- Lip Height: 0.300 in.
- Offset: 2.935 in.
- VMRS Code: 013-017-000
