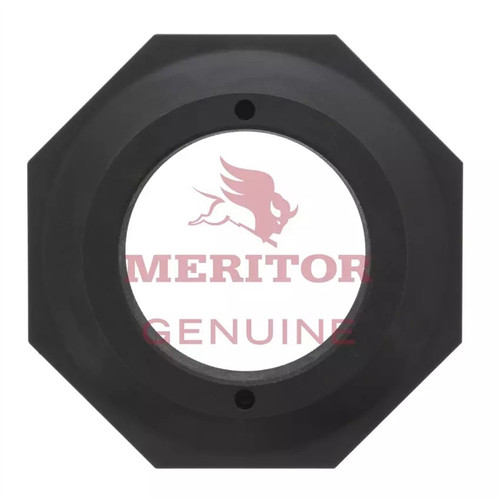

The R002460 Meritor spindle nut is the outer nut for drive axle wheel ends. It uses a 2-5/8"-12 thread with a matching 2-5/8 in. inside diameter, so it threads onto spindles cut for that size. The 3-1/2 in. hex takes a standard wheel bearing nut socket, and the 1 in. thickness keeps the stack height consistent when you reassemble the wheel end. Because it is the outer nut in a drive axle setup, it carries the final bearing adjustment once the inner nut and washer are set. Not sure this is your nut? Give us a call and we will match it to your axle.
Tech Specs
- Thread:2-5/8"-12
- Inside Diameter:2-5/8
- Hex:3 1/2 in.
- Application:Drive
- Thickness:1 in.
- Type:Drive Axle Spindle Outer Nut
