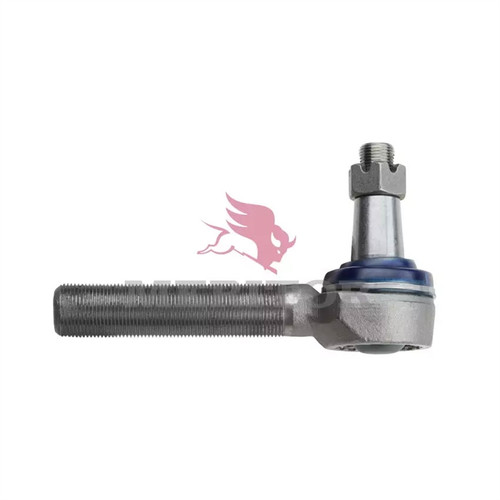

The A3144X1064 is a genuine Meritor AxleTech tie rod end assembly, curbside style and permanently sealed. The rod thread is 1.25 in. left hand at 12 threads per inch, the stud thread is 0.875 in. at 14 threads per inch, and stud center to rod end is 7.37 in. Pro Gear and Transmission sells it. Call us to confirm proper fit for your application.
This product has been superseded and is no longer available. If ordered, you will receive R230628.
Features
Curbside style, permanently sealed
Rod thread 1.25 in., 12 threads per inch, left hand
Stud thread 0.875 in., 14 threads per inch
Stud center to rod end 7.37 in.
Tech Specs
- Large Taper Diameter: 1.25 in.
- Small Taper Diameter: 1.08 in.
- Taper Length: 1.36 in.
- Rod Thread Diameter: 1.25 in.
- Rod Threads per Inch: 12
- Rod Thread Direction: LH
- Stud Thread Diameter: 0.875 in.
- Stud Threads per Inch: 14
- Stud Center to Rod End: 7.37 in.
- Style: Curbside
- Notes: Permanently sealed
- VMRS Code: 011-001-031
