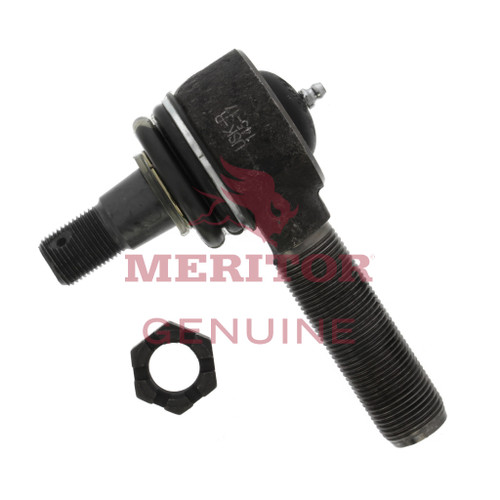

The Meritor R230063 tie rod end is a curbside-style steer axle joint for heavy-duty front axle steering linkage. It uses a 1.00 in. diameter rod thread at 16 threads per inch with a right-hand thread direction, and a 0.75 in. stud thread also at 16 threads per inch. The stud taper measures 0.899 in. at the large end and 0.78 in. at the small end over a 0.95 in. taper length, with a 3.875 in. stud center to rod end dimension. Interchange numbers include Federal Mogul, Moog, TRW and Spicer ES304R, plus Dana/Spicer SP692098 and Navistar 581064C91. Call us to confirm proper fit for your application.
Features
Curbside style steer axle tie rod end
Rod thread: 1.00 in. diameter, 16 threads per inch, right-hand
Stud thread: 0.75 in. diameter, 16 threads per inch
Stud taper: 0.899 in. large, 0.78 in. small, 0.95 in. taper length
Stud center to rod end: 3.875 in.
Interchanges with ES304R, SP692098, and Navistar 581064C91
Tech Specs
- Large Taper Diameter: 0.899 in.
- Small Taper Diameter: 0.78 in.
- Taper Length: 0.95 in.
- Rod Thread Diameter: 1.00 in.
- Rod Threads per Inch: 16
- Rod Thread Direction: Right Hand
- Stud Thread Diameter: 0.75 in.
- Stud Threads per Inch: 16
- Stud Center to Rod End: 3.875 in.
- Style: Curbside
