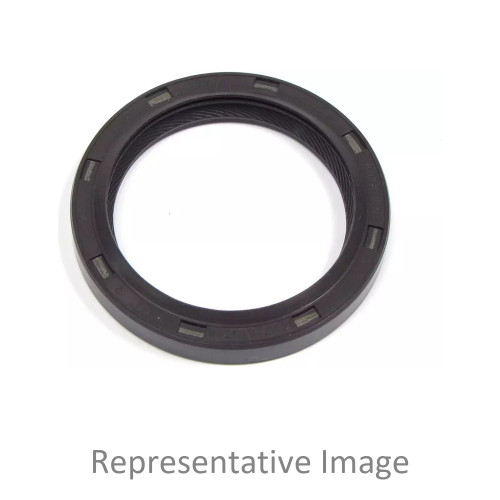

The Meritor AxleTech MER0264 wheel seal is made for FL series steer axle applications. It has a 4.351 in. (110.52 mm) inside diameter, a 5.924 in. outside diameter, a 0.646 in. seal width and a 0.99 in. overall thickness. It is used in Meritor assembly MER0264B20 (Wheel End - Wheel Seal) and is cataloged in PB8857, the Meritor Drum Brake and Wheel End Catalog. Sold as a genuine part by Pro Gear and Transmission. Call us to confirm proper fit for your axle.
Cataloged in PB8857 - Meritor Drum Brake and Wheel End Catalog.
Interchanges:
- 380048AFDM
- 504863
- 8235MER0264
- ABP10045883
- CNM10045883
- CO10045883
- TDAMER0264
- TWDMER0264
- V380048A
- Alliance ABP10082933
- Conmet 10045883
- Dana 863
- National 380048A
- RevHD RMS05
- SKF 43761
- Stemco 3730264
- Stemco 3830264
Features
FL series steer axle application
Inside diameter 4.351 in. (110.52 mm), outside diameter 5.924 in.
Seal width 0.646 in., overall thickness 0.99 in.
Bore circumference 18.61 in.
Used in Meritor assembly MER0264B20 (Wheel End - Wheel Seal)
Tech Specs
- Axle Series: FL
- Axle Application: Steer
- Inside Diameter: 4.351 in. / 110.52 mm
- Outside Diameter: 5.924 in.
- Seal Width: 0.646 in.
- Thickness: 0.99 in.
- Bore Circumference: 18.61 in.
- Unit Pack: 1
- VMRS Code: 018-001-004
- Meritor Standard Part: MER0164
- Status: Active
Additional Information
Used in Meritor assembly MER0264B20 (Wheel End - Wheel Seal).Cataloged in PB8857 - Meritor Drum Brake and Wheel End Catalog.
