Genuine Midland Haldex 24/30 Long Stroke brake parts P/N: GC2430XL, for help on parts, availability or questions - call us, we will gladly help.

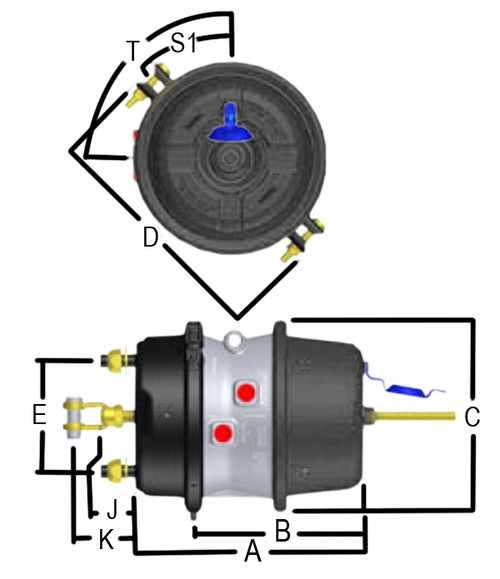

B = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Replaces 2430074 and MA15471
Features
Combination - Extra Long Stroke - Size 2430 - Square Bosses
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
Rugged Service Housing; 9 gauge steel, powder coated
Orange Alert® Stroke Indicator
Self-piloting Dust Shield
Sizes to fit all drum brake applications
Tech Specs
- Stroke Type Extra Long
- Available Stroke 3.00", 76mm
- A 9.9", 251mm
- B 7.4", 188mm
- C 8.3", 211mm
- D 9.4", 239mm
- J 10.00"
- Weight 20.3 lbs. , 9.2 kg.
- Quantity 1
Additional Information
A = Length from mounting bracket to end of Spring HousingB = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Replaces 2430074 and MA15471
