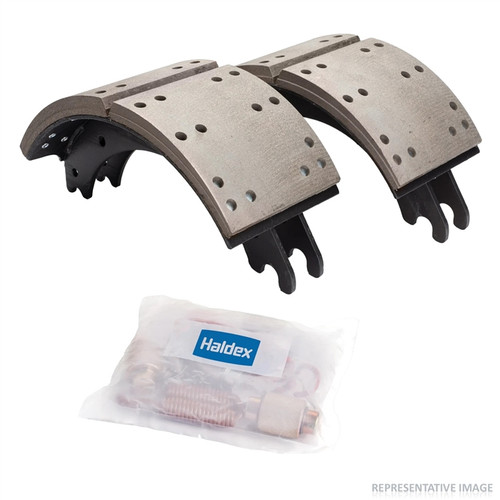

Midland Haldex GN4515X5G is a relined gripper brake shoe kit sized 16-1/2" x 7", built for S-Cam drum brake axles rated at 20,000 lb. GAWR. The FMSI number is 4515, Shoe I.D. is X5, and the friction material carries a Friction Code of FF with Material Type 2017. Hardware kit CQ66867 is included in the box, making this a complete, ready-to-install set. The core group designation is 4515X5. Sold by Pro Gear and Transmission. Call us to confirm this kit fits your specific axle application before ordering.
A refundable core charge of $1.40 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
16-1/2" x 7" shoe dimensions, FMSI Number 4515, Shoe I.D. X5
S-Cam drum brake application, 20,000 lb. GAWR rating
Friction Code FF, Material Type 2017
Relined gripper design, boxed
Includes hardware kit CQ66867
Core Group 4515X5
Tech Specs
- Width: 7"
- Shoe Length: 16-1/2"
- FMSI Number: 4515
- Shoe I.D.: X5
- Brake Type: S-Cam
- Friction Code: FF
- Material Type: 2017
- GAWR: 20,000 lbs.
- Hardware Kit: CQ66867
- Includes Hardware Kit: Yes
- Core Group: 4515X5
