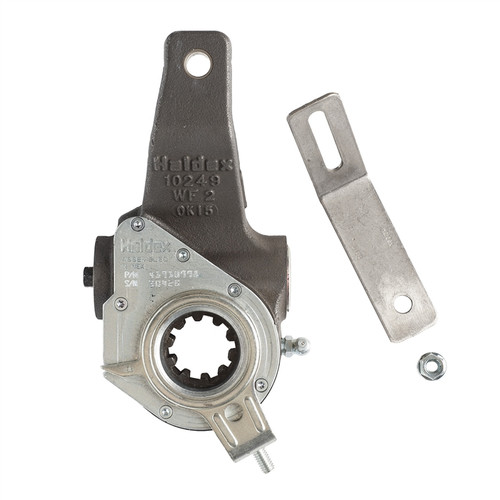

Genuine Midland Haldex Aba Kit brake parts P/N: 40020229, we offer the best service in the industry with years of expert knowledge! Call us if you have questions.
The gradual adjustment of the S-ABA lowers the risk of over-adjustment during prolonged braking.
Standard Steer Axle Application.
Can be used for 40010008.
Features
S-ABA Brake Adjusteruster
High alloy steel gears
Rolled wormshaft
Heat-treated housing
Centralized clutch
Tech Specs
- Spline Diameter-Spline Count: 1-1/2"-28
- Arm Length: 5-1/2"
- Body Angle: 34°
- Offset: 0
- Arm Hole Diameter: 1/2"
- Bracket Kit: 42710566
- Anchor Bracket Style: Clamp
- OEM Part Number: 409-26018
- Grease Fitting Location: 180°
- Grease Fitting Type: Straight
Additional Information
The clearance-sensing design maintains a constant and uniform distance between the brake drum and lining.The gradual adjustment of the S-ABA lowers the risk of over-adjustment during prolonged braking.
Standard Steer Axle Application.
Can be used for 40010008.
