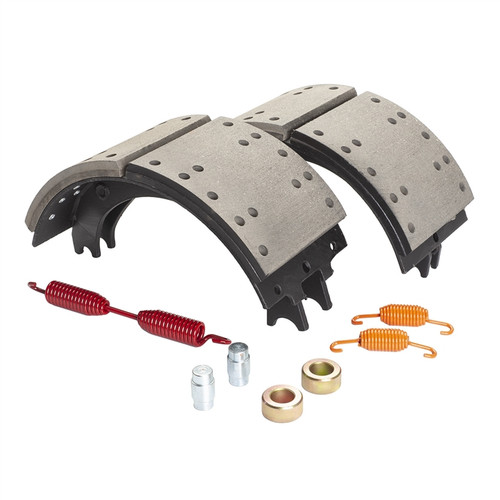

The Midland Haldex GG4725ES2G is a relined Gripper brake shoe kit sized 16-1/2" x 6" for S-cam drum brake applications. Designed around FMSI Number 4725 with Shoe I.D. ES2, this kit fits Eaton ES II brake assemblies and is rated for a 23,000 lb. GAWR steer axle. Friction code FF and Material Type 2020 lining are specified. The kit ships boxed and includes Hardware Kit CQ65445, which contains "Horse Collar" return springs suited for steer axle use. Cross-references include KT4725E21160HC, RK4725E2PR23M, TG472502G, and HDX-GG4725ES2G. Call us to confirm proper fit for your application.
Cross-references: KT4725E21160HC, RK4725E2PR23M, TG472502G, HDX-GG4725ES2G, HDXGG4725ES2G, MBIGG4725ES2G, MIDGG4725ES2G, 5397-GG4725ES2G.
A refundable core charge of $56.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
16-1/2" x 6" S-cam drum brake shoe kit, FMSI Number 4725
Shoe I.D. ES2, compatible with Eaton ES II brake assemblies
Friction code FF, Material Type 2020 lining
Single anchor pin design
Rated for 23,000 lb. GAWR steer axle applications
Includes Hardware Kit CQ65445 with Horse Collar return springs for steer axle
Tech Specs
- Width: 6"
- Drum Diameter: 16-1/2"
- FMSI Number: 4725
- Shoe I.D.: ES2
- Brake Type: S-Cam
- Friction Code: FF
- Material Type: 2020
- GAWR: 23,000 lbs.
- Hardware Kit: CQ65445 (included)
- Core Group: 4725NS
Additional Information
This kit contains two relined brake shoes and Hardware Kit CQ65445. Hardware Kit CQ65445 includes Horse Collar return springs, making it the correct choice for steer axle installations. An alternative hardware kit, CQ65477, is also available separately but does not include Horse Collar return springs.Cross-references: KT4725E21160HC, RK4725E2PR23M, TG472502G, HDX-GG4725ES2G, HDXGG4725ES2G, MBIGG4725ES2G, MIDGG4725ES2G, 5397-GG4725ES2G.
