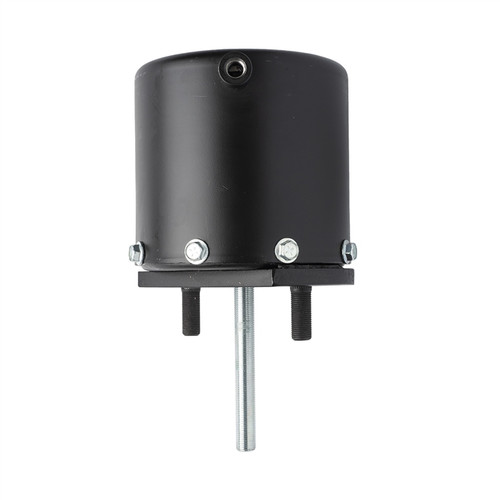

Genuine Midland Haldex Chamber brake parts P/N: LCP2430L, for help on parts, availability or questions - call us, we will gladly help.
Features
2430 LifeSeal+
Stroke 3.0"
Pushrod 10.00"
Heavy duty housing
Standard power spring
Threaded with clevis
Tech Specs
- Actuator Type Size 2430
- Stroke Type Long
- Available Stroke 3.0"
- Pushrod Threads 5/8"
- Weight 12.5 LBS
- A - Length from mounting bracket to end of Spring Housing 9.70"
- B - Length of Piggyback 7.19"
- C - Dimension at rolled Spring Housing flange 8.19"
- D - Dimension at Service Clampband 9.41"
- E - Stud Spacing 4.75"
- J - Pushrod Length from face of Service Housing 10.00"
- K - Distance to Clevis Pin centerline from face of Service Housing N/A
- S1 - Service Clampband position 0°
- T - Air Port position 90°
