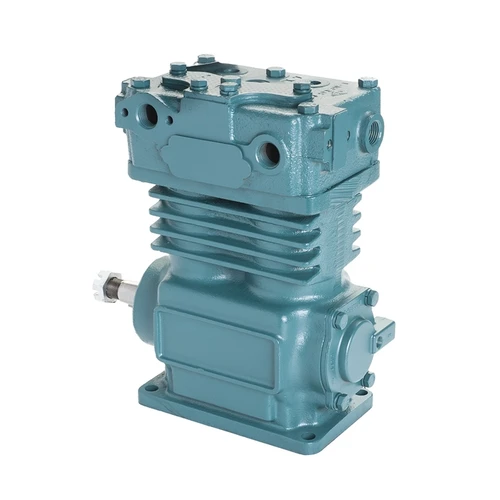

The Midland Haldex EL13022X is a belt-drive air compressor with left-hand head rotation, designed for Ford applications with a bottom cover oil drain configuration. It replaces OEM part number N7002Z and falls under Core Group 1301. Key dimensions are 11.42 in. tall, 4.79 in. wide, and 8.93 in. long, with a 2.14 in. external shaft length. The 2.75 in. bore and 1.50 in. stroke deliver a rated displacement of 13.0 CFM at 1250 RPM, and the unit accepts turbo-charge pressure up to 35 PSI maximum. It mounts on a 4-hole base, features a rotatable head, end cap oil feed, base oil drain, water cooling, and a top-flange discharge port. Call us to confirm proper fit for your application.
Changeover and installation instructions for EL13022X are covered in document L31024.
The head and end cap may require rotation before installation or changeover to match the target vehicle plumbing layout.
Service units are furnished without governors or manifolds.
Thru-drive units must not exceed 65 ft. lbs. of transmitted torque.
Installation gaskets are included.
A refundable core charge of $210.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Replaces OEM part number N7002Z (Core Group 1301)
Rated displacement: 13.0 CFM at 1250 RPM
Bore diameter: 2.75 in., stroke: 1.50 in.
Max turbo-charge pressure: 35 PSI
Left-hand head rotation; rotatable head design allows repositioning before installation
Belt drive with end cap oil feed, base oil drain, water cooling, and top-flange discharge
Tech Specs
- OEM Part Number: N7002Z (Exact Replacement)
- Core Group: 1301
- Application Notes: Ford; bottom cover with oil drain
- Head Rotation: Left
- Overall Height: 11.42 in.
- Overall Width: 4.79 in.
- Overall Length: 8.93 in.
- External Shaft Length: 2.14 in.
- Bore Diameter: 2.75 in.
- Stroke: 1.50 in.
- Turbo-Charge Pressure: 35 PSI maximum
- Rated Displacement: 13.0 CFM @ 1250 RPM
- Mount Type: 4-Hole Base
- Drive Type: Belt Drive
- Discharge Type: Top / Flange
- Cooling: Water Cooled
- Oil Feed: End Cap
- Oil Drain: Base
Additional Information
Port orientation is viewed from the front of the unit.Changeover and installation instructions for EL13022X are covered in document L31024.
The head and end cap may require rotation before installation or changeover to match the target vehicle plumbing layout.
Service units are furnished without governors or manifolds.
Thru-drive units must not exceed 65 ft. lbs. of transmitted torque.
Installation gaskets are included.
