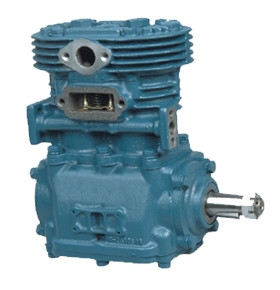

Genuine Midland Haldex Compressor brake parts P/N: EL16200X, expert help when you need it! Call us for any questions on this part or availability!
Block Rotation Right
External Shaft Length 2.00 in.
Application Caterpillar 3406B Engine
Notes High Capacity , Tapered Shaft , Threaded Mounting Holes
OEM Part Number NT7220 Exact Replacement
Core Group 1600
Overall Height 12.19 in.
Overall Width 5.44 in.
Overall Length 11.31 in.
Bore Diameter 2.75 in.
Stroke 1.87 in.
Rated Displacement 16.1 CFM @ 1250 RPM
Approximate Weight 45 lbs.
A refundable core charge of $210.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Reman. 3-Hole Flange Mount
Flange Mount, Gear Drive
End Cap Oil Feed
Flange Oil Drain
Water Cooled
Top/Flange Discharge Type
Overall Height: 12.19 in.
Overall Width: 5.44 in.
Overall Length: 11.31 in.
Approximate Weight 45 lbs.
Tech Specs
- Orientation viewed from front.
- Service Units are furnished without governors and manifolds and may require head rotation and end cap rotation before installation or changeover.
- Service Units are furnished without governors and manifolds and may require head rotation and end cap rotation before installation or changeover.
- Torque Nut to 80-100 ft. lbs.
- Include installation gaskets
Additional Information
Head Rotation RightBlock Rotation Right
External Shaft Length 2.00 in.
Application Caterpillar 3406B Engine
Notes High Capacity , Tapered Shaft , Threaded Mounting Holes
OEM Part Number NT7220 Exact Replacement
Core Group 1600
Overall Height 12.19 in.
Overall Width 5.44 in.
Overall Length 11.31 in.
Bore Diameter 2.75 in.
Stroke 1.87 in.
Rated Displacement 16.1 CFM @ 1250 RPM
Approximate Weight 45 lbs.
