Genuine Midland Haldex Dryer brake parts P/N: DA35115, we offer the best service in the industry with years of expert knowledge! Call us if you have questions.
Features

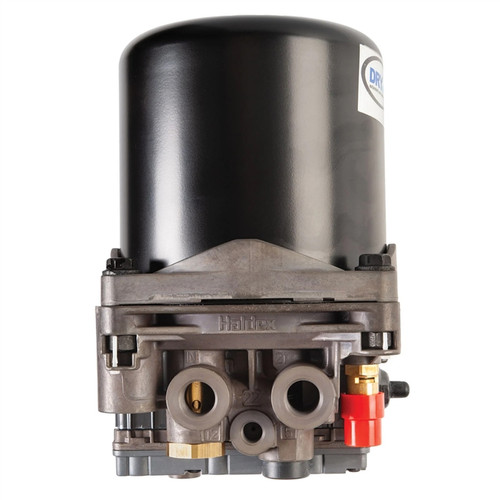

DRYestâ„¢ Air Dryer
Extended Service Air Dryer for System Purge Application.
Multi-Treatment Cartridge employs 5 stages of cleaning to ensure dry system air.
Integrated turbo protection.
Built-in heater prevents freezing and damage to the dryer.
Extra compact size allows for easy installation anywhere.
Integrated muffler allows for superior quiet operation.
Tech Specs
- Heater 24 Volt
- System Regeneration No
- Integrated Governor No
- Notes For use with external purge tank.
- OEM Part Number N4260C
- Stages of Drying 5
- Inlet Temperature -40°F to 170°F
- Maximum Working Pressure 150 psi
- Safety Relief Pressure 160 psi
- Heater Watt Specification 140W
- Drying Capacity 5.8 SCF
- Desiccant Cartridge 3.5 lbs.
- Assembly Weight 13.5 lbs.
- Governor Cut-Out N/A
- Maximum Inlet Airflow 35 SCFM
- Pressure Drop 2.5 psi at 15 SCFM/120 psi
- Regeneration Valve System Purge Drain Silencer
- Turbo Protection 35 psi Inlet Required
