Genuine Midland Haldex Lifeseal Plus brake parts P/N: LCP3030S7CW, we offer original, genuine parts straight from the manufacturer, order today!.
Features
3030 LifeSeal+
Stroke 3.0"
Center-line of clevis pin 4.20"
Heavy duty housing
High output power spring
Welded clevis
Tech Specs
- Actuator Type Size 3030
- Stroke Type Standard
- Available Stroke 2.5"
- Pushrod Threads N/A
- Weight 21.6 lbs

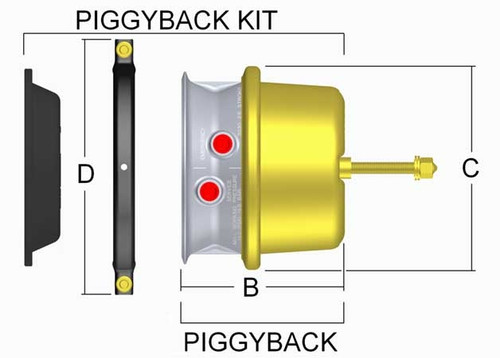

- A - Length from mounting bracket to end of Spring Housing 8.95"
- B - Length of Piggyback 6.42"
- C - Dimension at rolled Spring Housing flange 8.19"
- D - Dimension at Service Clampband 10.18"
- E - Stud Spacing 4.75"
- J - Pushrod Length from face of Service Housing N/A
- K - Distance to Clevis Pin centerline from face of Service Housing 4.20"
- S1 - Service Clampband position 45°
- T - Air Port position 90°
