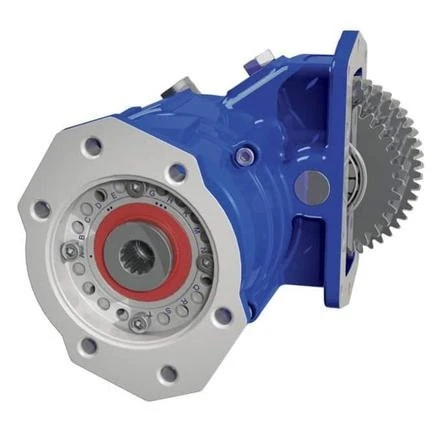

The Muncie A20-A1010-HX1X4PX is a medium-duty, 10-bolt clutch shift power take-off engineered specifically for Allison 3000 and 4000 Series transmissions. The A20 Series design centers on a rotatable pump flange and a shift cover with 360-degree rotation, giving installers considerably more flexibility during mounting. Extended-length PTO mounting fasteners and increased installation clearances reduce the time spent fitting the unit to the transmission. Tapered roller bearings and an increased-diameter output shaft address long-term durability, while a maximized gear design keeps noise down under load. The A20-A1010-HX1X4PX also supports three housing arrangements and is compatible with the EX Drive shaft extension. Call us to confirm the right configuration for your application.
Features
10-bolt clutch shift design for Allison 3000 and 4000 Series transmissions
Rotatable pump flange with shift cover allowing 360-degree rotation
Extended-length PTO mounting fasteners and increased clearances for easier installation
Tapered roller bearings and larger-diameter output shaft for extended service life
Maximized gear geometry for reduced operating noise
Compatible with EX Drive shaft extension; three housing arrangements available
Tech Specs
- Mounting: 10-bolt
- Shift type: Clutch shift
- Transmission compatibility: Allison 3000 Series and 4000 Series
- Housing arrangements: Three available
- Pump flange: Rotatable
- Shift cover rotation: 360 degrees
- EX Drive shaft extension: Compatible
- Speed 5 - 3000 Series engine %: 74% / 4000 Series engine %: 105% / HP (kW) @ 1,000 RPM: 77 (57) / Torque lbs.ft. (Nm) intermittent/continuous: 400 (542)
- Speed 6 - 3000 Series engine %: 85% / 4000 Series engine %: 122% / HP (kW) @ 1,000 RPM: 77 (57) / Torque lbs.ft. (Nm) intermittent/continuous: 400 (542)
- Speed 7 - 3000 Series engine %: 99% / 4000 Series engine %: 141% / HP (kW) @ 1,000 RPM: 79 (59) / Torque lbs.ft. (Nm) intermittent/continuous: 415 (563)
- Speed 8 - 3000 Series engine %: 114% / 4000 Series engine %: 163% / HP (kW) @ 1,000 RPM: 69 (51) / Torque lbs.ft. (Nm) intermittent/continuous: 360 (488)
- Speed 9 - 3000 Series engine %: 122% / 4000 Series engine %: 175% / HP (kW) @ 1,000 RPM: 65 (48) / Torque lbs.ft. (Nm) intermittent/continuous: 340 (461)
- Speed 10 - 3000 Series engine %: 131% / 4000 Series engine %: 187% / HP (kW) @ 1,000 RPM: 59 (44) / Torque lbs.ft. (Nm) intermittent/continuous: 310 (420)
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
