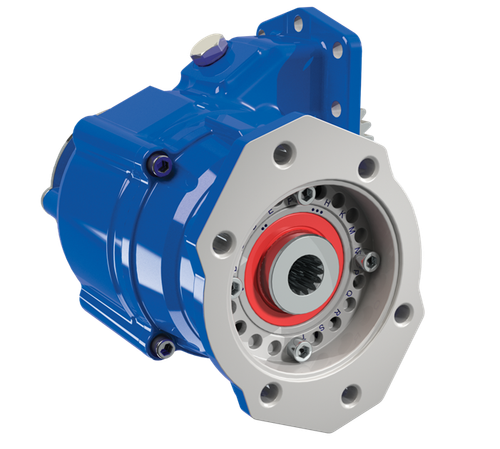

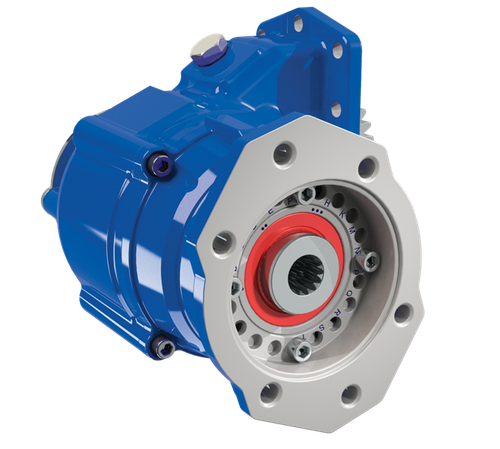

The Muncie A30-A1006-MX3CBPW or A30A1006MX3CBPW is a 10-bolt Allison-mount constant drive power take-off from Muncie's A30 Series. Designed for both 3000 and 4000 Series Allison transmissions, this PTO carries a single intermittent/continuous torque rating, which simplifies application engineering by eliminating separate duty-cycle derating. Tapered roller bearings extend service life, and the increased-diameter output shaft adds durability under sustained loads. A rotatable pump flange allows the hydraulic pump to be clocked to three housing arrangements, easing installation clearance. Reduced leak paths keep fluid where it belongs, and the maximized gear design keeps noise low. The unit accepts Muncie's EX Drive shaft extension for added flexibility. Call us to confirm proper fit for your application.
Features
10-bolt Allison transmission mount, constant drive engagement
Rotatable pump flange with three housing arrangements for flexible installation
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher durability under load
Single intermittent/continuous torque rating simplifies application selection
Compatible with Muncie EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
