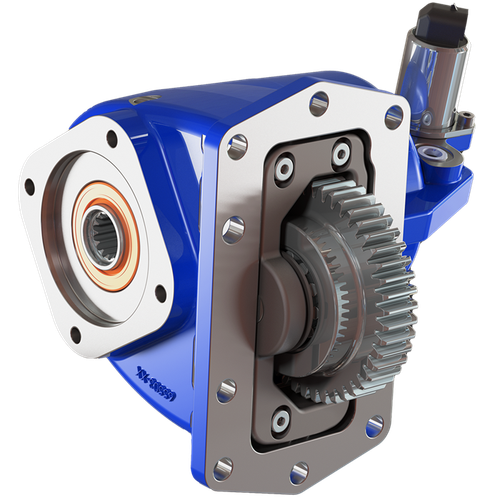

F20-F1312-GX5TAPX Muncie F20 Power Take-Off for Ford 10R140 10-Speed

The Muncie F20 Power Take-Off, part number F20-F1312-GX5TAPX or F20F1312GX5TAPX, is engineered specifically for the Ford 10R140 10-speed automatic transmission used in Ford Super Duty trucks from the F-250 through the F-600, beginning with model year 2020. The F20 features solenoid activation and patented noise abatement technology that sets it apart from earlier PTO designs on this platform. Output options include direct mount and round shaft configurations. A pre-configured wiring harness simplifies installation, and the unit can be configured in under five minutes. For applications involving high-inertia loads, this PTO is available with Muncie Start, an electronically controlled, modulated clutch engagement system that eliminates torque spikes on engagement. Speed ratio code 12 delivers 130% of engine speed, with an intermittent rating of 50 HP and 261 lb.-ft. of torque at 1,000 RPM. Call us to confirm proper fit for your application.

Features

Fits Ford Super Duty F-250 through F-600 with Ford 10R140 10-speed transmission, model year 2020 and up
Solenoid activated engagement
Patented noise abatement technology for quieter operation
Speed ratio code 12: 130% of engine speed, 50 HP intermittent / 261 lb.-ft. intermittent torque at 1,000 RPM
Direct mount and round shaft output options available
Pre-configured wiring harness included; configures in under 5 minutes
Optional Muncie Start modulated clutch engagement system eliminates torque spikes for high-inertia loads

Tech Specs

•
• Speed Ratio Code: 12
• Output Speed: 130% of engine speed
• Intermittent HP at 1,000 RPM: 50 HP (37 kW)
• Intermittent Torque at 1,000 RPM: 261 lb.-ft. (354 Nm)
• Transmission Application: Ford 10R140 10-speed automatic
• Vehicle Application: Ford Super Duty F-250 through F-600, model year 2020 and up
• Activation: Solenoid
• Output Options: Direct mount or round shaft
• Wiring: Pre-configured harness included
