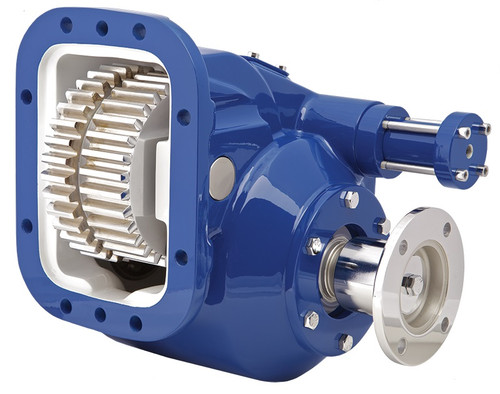

The Muncie 82 Series Power Take-Off, part number 828B-U6805-L1CX or 828BU6805L1CX, is a heavy-duty cast iron PTO built for high-torque hydraulic and mechanical drive applications. Double-acting air shift delivers positive engagement and disengagement. Peak intermittent capacity reaches 500 lb.ft. torque and 95 H.P. at 1,000 RPM at the fastest speed ratio, making it a fit for high-volume pumps and high-CFM blowers. Seven direct mount pump flange options cover S.A.E. "B," "BB," "C," and "D" as well as DIN 5462 mounts. Rotatable direct mount flanges let you position the pump for maximum clearance in the chassis. The 82 Series offers 8 speed ratios, 9 output shaft options, and 2 assembly arrangements. Call us to confirm proper fit for your specific transmission and chassis.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct mount pump options: S.A.E. "B," "BB," "C," "D," and DIN 5462 mounts
Two companion flange output types for remote pump and mechanical drives
Rotatable direct mount flanges for pump positioning and clearance
Tech Specs
- Housing: Cast iron
- Shift type: Double-acting air shift
- Assembly arrangements: 2
- Speed ratios available: 8
- Output shaft options: 9
- Direct mount pump flange options: 7 (S.A.E. B, BB, C, D; DIN 5462)
- Companion flange output types: 2
- Rotatable pump flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
