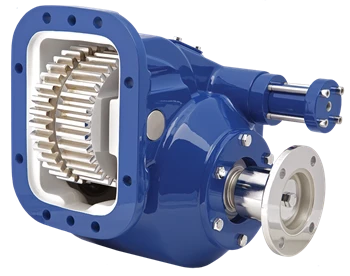

The Muncie 82 Series Power Take-Off, part number 828B-U6808-L1CX or 828BU6808L1CX, is an 8-bolt heavy duty mechanical shift PTO built for demanding applications including high-volume hydraulic pumps and high-CFM blowers. The cast iron housing measures 11.5 in. x 14.63 in. x 21.13 in. (H x W x L). Double-acting air shift provides positive engagement and disengagement. Seven direct-mount pump flange options cover S.A.E. "B," "BB," "C," and "D" patterns plus DIN 5462 mounts, and the rotatable direct-mount flanges allow positioning for maximum clearance. Two companion flange output types support both remote pump and mechanical drive configurations. The 82 Series offers eight speed ratio options and nine output shaft configurations across two assembly arrangements. Call us to confirm proper fit for your transmission and installation.
Features
8-bolt heavy duty mechanical shift configuration
Double-acting air shift for positive engagement and disengagement
Cast iron housing, 11.5 in. x 14.63 in. x 21.13 in. (H x W x L)
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct-mount pump options: S.A.E. B, BB, C, D and DIN 5462 mounts
Rotatable direct-mount flanges for maximum pump clearance
Tech Specs
- Housing construction: Cast iron
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Shift type: Double-acting air shift (mechanical shift configuration)
- Direct-mount pump options: 7 (S.A.E. B, BB, C, D; DIN 5462)
- Companion flange output types: 2
- Speed ratio options: 8
- Output shaft options: 9
- Assembly arrangements: 2
- Rotatable pump flange: Standard
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
