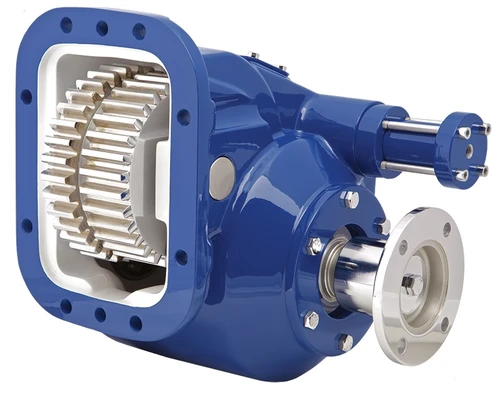

The Muncie 82 Series Power Take-Off, part number 828B-U6809-R1PX or 828BU6809R1PX, is a cast iron, double-acting air shift PTO built for high-torque applications including high-volume hydraulic pumps and high-CFM blowers. The 82 Series supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM at its highest speed ratio, with eight speed ratio options available. Direct-mount pump flanges are rotatable for maximum clearance, and seven direct-mount pump pad options cover S.A.E. "B," "BB," "C," "D," and DIN 5462 mounts. Two companion flange output types accommodate both remote pump and mechanical drive configurations. Call us to confirm proper fit and ratio for your application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (speed ratio 05)
Eight available speed ratios; nine output shaft options
Seven direct-mount pump pad options: S.A.E. "B," "BB," "C," "D," and DIN 5462
Rotatable direct-mount flanges allow pump positioning for maximum clearance
Tech Specs
- Housing: Cast iron
- Shift type: Double-acting air shift
- Speed ratios available: 8
- Output shaft options: 9
- Direct-mount pump options: 7 (S.A.E. "B," "BB," "C," "D," DIN 5462)
- Assembly arrangements: 2
- Rotatable pump flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Peak intermittent torque: 500 lb.ft. (678 NM) at speed ratio 05
- Peak continuous torque: 350 lb.ft. (475 NM) at speed ratio 05
- Peak intermittent power: 95 H.P. (71 kW) at 1,000 RPM at speed ratio 05
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
