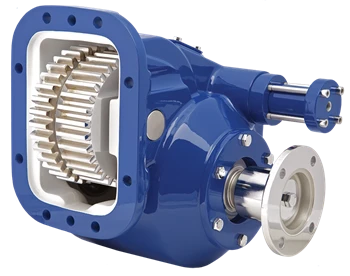

The Muncie 82 Series Power Take-Off, part number 828B-U6810-V1CX or 828BU6810V1CX, is a cast-iron PTO built for high-torque, heavy-duty truck applications. It delivers up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at the top speed ratio, making it capable of driving high-volume hydraulic pumps and high-CFM blowers. Shift control is double-acting air shift for positive engagement and disengagement. The 82 Series offers eight speed ratio options and nine output shaft configurations, plus two companion flange output types for remote pump or mechanical drive setups. Seven direct-mount pump flange options cover SAE "B," "BB," "C," and "D" as well as DIN 5462 mounts. Rotatable direct-mount flanges let you position the pump for maximum clearance. Call us to confirm proper fit for your transmission application.
Features
Double-acting air shift for positive engagement and disengagement
Cast-iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (speed ratio 05)
Eight speed ratio options; nine output shaft configurations
Seven direct-mount pump flange options: SAE "B," "BB," "C," "D," and DIN 5462
Rotatable direct-mount flanges for flexible pump positioning
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
