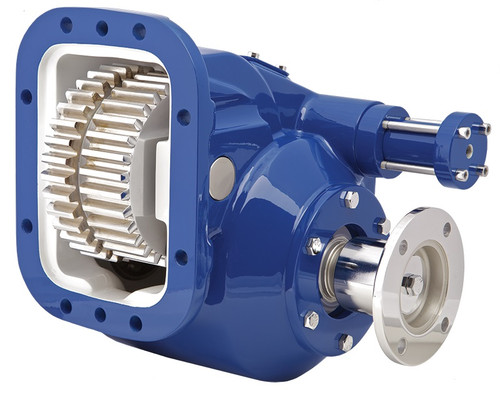

The Muncie 828B-U6812-T3EX or 828BU6812T3EX is an 82 Series Power Take-Off built for high-torque applications including high-volume hydraulic pumps and high-CFM blowers. The double-acting air shift provides positive engagement and disengagement. Cast iron housing construction and a rotatable pump flange are standard. The series supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM at the highest speed ratio. Seven direct-mount pump options cover S.A.E. "B," "BB," "C," and "D" flanges plus DIN 5462 mounts, with two companion flange output types for remote pump or mechanical drive configurations. Nine output shaft options and two assembly arrangements give installers the flexibility to match the unit to the chassis and pump package. Call us to confirm proper fit for your application.
Features
Double-acting air shift for positive engagement and disengagement
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct-mount pump flange options: S.A.E. "B," "BB," "C," "D" and DIN 5462
Rotatable direct-mount flanges allow pump positioning for maximum clearance
Cast iron housing construction
Nine output shaft options and two assembly arrangements
Tech Specs
- Housing Construction: Cast Iron
- Shift Type: Double-Acting Air Shift
- Speed Ratios Available: 8
- Output Shaft Options: 9
- Assembly Arrangements: 2
- Direct-Mount Pump Options: 7 (S.A.E. "B," "BB," "C," "D" and DIN 5462)
- Rotatable Pump Flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
