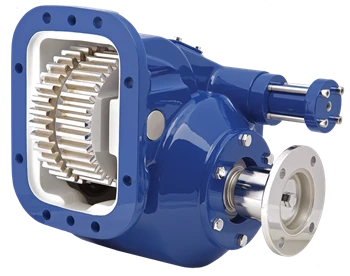

The Muncie 828B-U6815-V1EX or 828BU6815V1EX is a heavy-duty 82 Series power take-off built for high-torque vocational applications. Cast iron housing provides durability under continuous load. Double-acting air shift delivers positive engagement and disengagement. The 82 Series supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, making it capable of driving high-volume hydraulic pumps and high-CFM blowers. Seven direct-mount pump pad options cover SAE "B," "BB," "C," and "D" as well as DIN 5462 standards. Rotatable direct-mount flanges let you position the pump for maximum clearance in tight installations. Two companion flange output types accommodate remote pump and mechanical drive arrangements. Call us to confirm proper fit for your specific transmission and truck application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct-mount pump pad options: SAE "B," "BB," "C," "D," and DIN 5462
Rotatable direct-mount flanges for maximum pump clearance
Two companion flange output types for remote pump and mechanical drives
Tech Specs
- Housing construction: Cast iron
- Shift type: Double-acting air shift
- Assembly arrangements: 2
- Speed ratios available: 8
- Output shaft options: 9
- Direct-mount pump pad options: 7 (SAE "B," "BB," "C," "D," DIN 5462)
- Rotatable pump flange: Standard
- Max intermittent torque: 500 lb.ft. (678 Nm) at speed ratio 05
- Max continuous torque: 350 lb.ft. (475 Nm) at speed ratio 05
- Max intermittent HP: 95 H.P. (71 kW) at 1,000 RPM at speed ratio 05
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) |
(285) |
