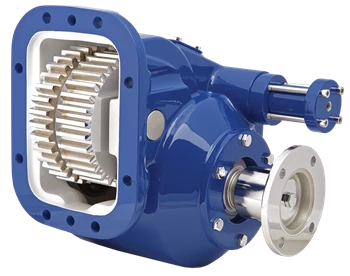

The Muncie 82 Series Power Take-Off, part number 828D-U6815-Q1EX or 828DU6815Q1EX, is built for heavy-duty applications demanding high torque output. The cast iron housing and double-acting air shift provide positive engagement and disengagement under load. At speed ratio 05, the unit delivers up to 95 HP and 500 lb.ft. intermittent torque at 1,000 RPM, with a continuous rating of 350 lb.ft. Seven direct-mount pump flange options cover S.A.E. "B," "BB," "C," and "D" as well as DIN 5462 mounts. Rotatable direct-mount flanges let you position the pump for maximum clearance in tight installations. Two companion flange output types extend the unit to remote pump and mechanical drive setups. Call us to confirm proper fit for your transmission application.
Features
Cast iron housing construction for durability in heavy-duty service
Double-acting air shift for positive engagement and disengagement
Up to 95 HP and 500 lb.ft. intermittent torque at 1,000 RPM (speed ratio 05)
Seven direct-mount pump options: S.A.E. B, BB, C, D, and DIN 5462 mounts
Rotatable direct-mount flanges allow pump positioning for maximum clearance
Two companion flange output types support remote pump and mechanical drives
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
