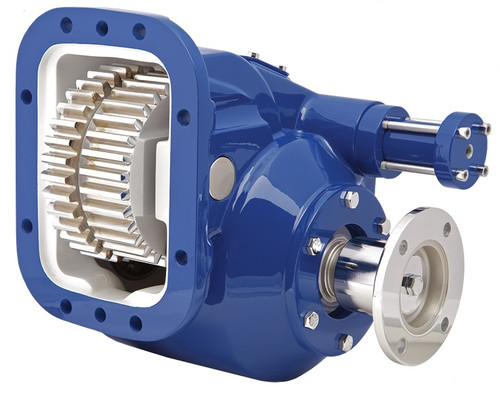

The Muncie 828S-KIT08-L1EX is an 82 Series Power Take-Off with double-acting air shift for positive engagement and disengagement. The cast iron housing supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, making it suited for high-volume hydraulic pumps and high-CFM blowers. Eight speed ratio options and nine output shaft configurations give installers flexibility across a wide range of chassis and pump combinations. Seven direct mount pump options cover S.A.E. "B," "BB," "C," and "D" flanges plus DIN 5462 mounts, and the rotatable direct mount flanges allow pump positioning for maximum clearance. Two companion flange output types support both remote pump and mechanical drive setups. Also referenced as part number 828SKIT08L1EX or MU828SKIT08L1EX. Call us to confirm proper fit for your transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct mount pump options: S.A.E. "B," "BB," "C," "D," and DIN 5462 mounts
Rotatable direct mount flanges for maximum pump clearance
Eight speed ratio options and nine output shaft configurations
Tech Specs
- Housing construction: Cast iron
- Shift type: Double-acting air shift
- Speed ratios available: 8
- Output shaft options: 9
- Assembly arrangements: 2
- Direct mount pump flange options: 7 (S.A.E. "B," "BB," "C," "D," DIN 5462)
- Companion flange output types: 2
- Rotatable pump flange: Standard
- Intermittent torque (speed ratio 05): 500 lb.ft. / 678 Nm
- Continuous torque (speed ratio 05): 350 lb.ft. / 475 Nm
- Intermittent HP at 1,000 RPM (speed ratio 05): 95 H.P. / 71 kW
- Intermittent torque (speed ratio 08): 450 lb.ft. / 610 Nm
- Continuous torque (speed ratio 08): 315 lb.ft. / 427 Nm
- Intermittent HP at 1,000 RPM (speed ratio 08): 85 H.P. / 63 kW
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Alternate part numbers: 828SKIT08L1EX, MU828SKIT08L1EX
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
