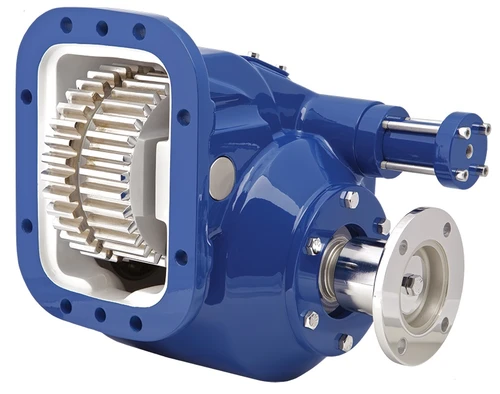

The Muncie 82 Series Power Take-Off, part number 828S-KIT12-L1PX or 828SKIT12L1PX, is a heavy-duty PTO built for high-torque truck applications including high-volume hydraulic pumps and high-CFM blowers. The cast iron housing uses a double-acting air shift for positive engagement and disengagement. At speed ratio 05, intermittent capacity reaches 95 H.P. and 500 lb.ft. torque at 1,000 RPM, with a continuous rating of 350 lb.ft. The 82 Series supports eight speed ratios, nine output shaft options, two companion flange output types, and seven direct-mount pump options covering SAE "B," "BB," "C," "D," and DIN 5462 mounts. Rotatable direct-mount flanges allow positioning the pump for maximum clearance. Call us to confirm proper fit for your application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (speed ratio 05)
Eight available speed ratios; nine output shaft options
Seven direct-mount pump options: SAE B, BB, C, D, and DIN 5462 mounts
Rotatable direct-mount flanges for pump positioning and clearance
Tech Specs
- Housing construction: Cast iron
- Shift type: Double-acting air shift
- Speed ratios available: 8
- Output shaft options: 9
- Direct-mount pump options: 7 (SAE B, BB, C, D; DIN 5462)
- Companion flange output types: 2
- Assembly arrangements: 2
- Rotatable pump flange: Standard
- Intermittent torque (ratio 05): 500 lb.ft. / 678 Nm
- Continuous torque (ratio 05): 350 lb.ft. / 475 Nm
- Intermittent HP at 1,000 RPM (ratio 05): 95 HP / 71 kW
- Intermittent torque (ratio 06): 450 lb.ft. / 610 Nm
- Continuous torque (ratio 06): 315 lb.ft. / 427 Nm
- Intermittent HP at 1,000 RPM (ratio 06): 85 HP / 71 kW
- Intermittent torque (ratio 08): 450 lb.ft. / 610 Nm
- Continuous torque (ratio 08): 315 lb.ft. / 427 Nm
- Intermittent HP at 1,000 RPM (ratio 08): 85 HP / 63 kW
- Intermittent torque (ratio 09): 410 lb.ft. / 556 Nm
- Continuous torque (ratio 09): 287 lb.ft. / 389 Nm
- Intermittent HP at 1,000 RPM (ratio 09): 78 HP / 58 kW
- Intermittent torque (ratio 10): 410 lb.ft. / 556 Nm
- Continuous torque (ratio 10): 287 lb.ft. / 389 Nm
- Intermittent HP at 1,000 RPM (ratio 10): 78 HP / 58 kW
- Intermittent torque (ratio 12): 375 lb.ft. / 508 Nm
- Continuous torque (ratio 12): 263 lb.ft. / 356 Nm
- Intermittent HP at 1,000 RPM (ratio 12): 71 HP / 53 kW
- Intermittent torque (ratio 13): 375 lb.ft. / 508 Nm
- Continuous torque (ratio 13): 263 lb.ft. / 356 Nm
- Intermittent HP at 1,000 RPM (ratio 13): 71 HP / 53 kW
- Intermittent torque (ratio 15): 350 lb.ft. / 475 Nm
- Continuous torque (ratio 15): 245 lb.ft. / 332 Nm
- Intermittent HP at 1,000 RPM (ratio 15): 67 HP / 50 kW
- Intermittent torque (ratio 19): 300 lb.ft. / 407 Nm
- Continuous torque (ratio 19): 210 lb.ft. / 285 Nm
- Intermittent HP at 1,000 RPM (ratio 19): 57 HP / 43 kW
- Also referenced as: MU828SKIT12L1PX
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) |
(285) |
