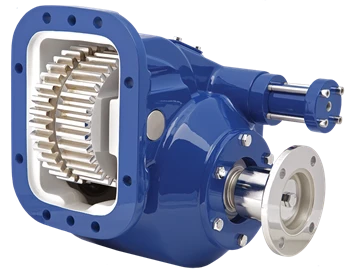

The Muncie 828S-M6508-Q1EX or 828SM6508Q1EX is a heavy-duty 82 Series power take-off built for high-torque truck applications. The 82 Series carries up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM at its highest speed ratio, making it a practical choice for high-volume hydraulic pumps and high-CFM blowers. Shift is double-acting air, providing positive engagement and disengagement. The cast iron housing supports seven direct-mount pump flange options covering S.A.E. "B," "BB," "C," and "D" pads plus DIN 5462 mounts, with rotatable flanges to clear tight installations. Two companion flange output types extend compatibility to remote pump and mechanical drive setups. Call us to confirm proper fit for your transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (speed ratio 05)
Cast iron housing construction
Seven direct-mount pump pad options: S.A.E. "B," "BB," "C," "D" and DIN 5462
Rotatable direct-mount flanges for maximum pump clearance
Two companion flange output types for remote pump and mechanical drives
Nine output shaft options and eight available speed ratios across the series
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
