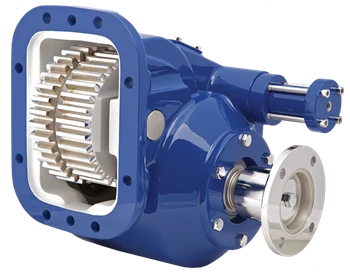

The Muncie 828S-M6510-V1EX or 828SM6510V1EX is a power take-off from Muncie's 82 Series, engineered for high-torque, heavy-duty truck applications. The 82 Series features double-acting air shift for positive engagement and disengagement, a cast iron housing, and a rotatable direct-mount pump flange as standard. Two companion flange output types cover remote pump and mechanical drive configurations, and seven direct-mount pump options include SAE "B," "BB," "C," and "D" flanges as well as DIN 5462 mounts. The series offers eight available speed ratios and nine output shaft options. Call us to confirm proper fit and configuration for your specific transmission and application.
Features
Muncie 82 Series power take-off, part 828S-M6510-V1EX or 828SM6510V1EX
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Rotatable direct-mount pump flange standard, with seven pump mount options (SAE B, BB, C, D and DIN 5462)
Two companion flange output types for remote pump and mechanical drives
Eight available speed ratios and nine output shaft options across the 82 Series
