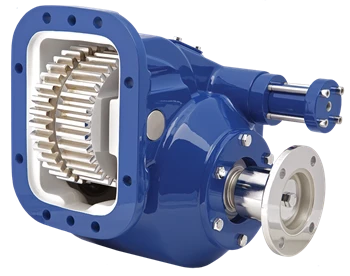

The Muncie 828S-M6513-B3EX or 828SM6513B3EX is a heavy-duty power take-off from Muncie's 82 Series, built for high-torque applications such as high-volume pumps and high-CFM blowers. The 82 Series uses a double-acting air shift for positive engagement and disengagement, and the housing is cast iron. The series supports up to seven direct-mount pump flange options including SAE "B," "BB," "C," "D," and DIN 5462 mounts, with rotatable flanges to maximize clearance for pump positioning. Two companion flange output types and nine output shaft options give the 82 Series broad application flexibility. Call Pro Gear and Transmission to confirm proper fit for your truck and transmission.
Features
Muncie 82 Series PTO, part 828S-M6513-B3EX or 828SM6513B3EX
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Seven direct-mount pump flange options: SAE "B," "BB," "C," "D," and DIN 5462
Rotatable pump flanges for maximum pump-positioning clearance
Two companion flange output types; nine output shaft options available in the series
