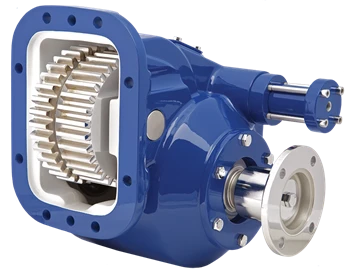

The Muncie 828S-M6513-D3EG (also referenced as 828SM6513D3EG) is a heavy-duty power take-off from Muncie's 82 Series lineup. The 82 Series is built around a cast iron housing with double-acting air shift for positive engagement and disengagement. It supports up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM at its highest ratio, making it a practical choice for high-volume pump and high-CFM blower drives. The series offers rotatable direct mount pump flanges, accommodating SAE "B," "BB," "C," and "D" as well as DIN 5462 mounting configurations. Call Pro Gear and Transmission to confirm this part number fits your specific transmission and application.
Features
Muncie 82 Series heavy-duty PTO, part 828S-M6513-D3EG or 828SM6513D3EG
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
82 Series rated up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM
Rotatable direct mount pump flange standard
Compatible mounting options include SAE B, BB, C, D and DIN 5462
